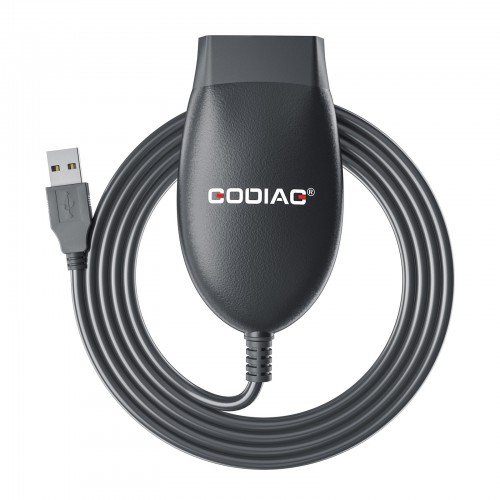

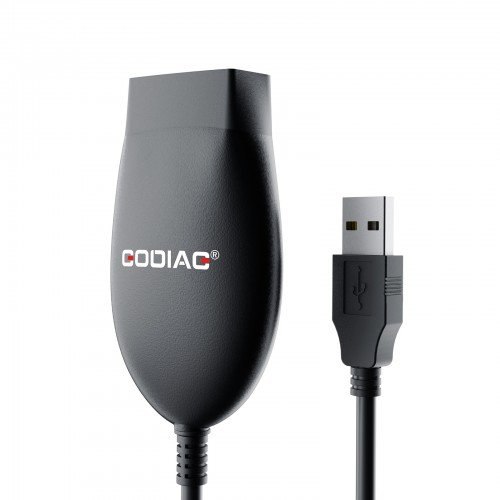

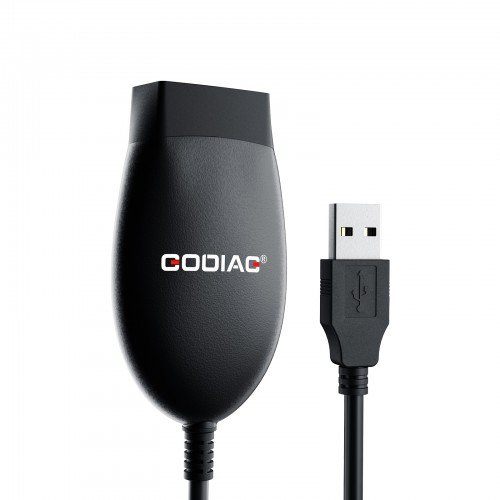

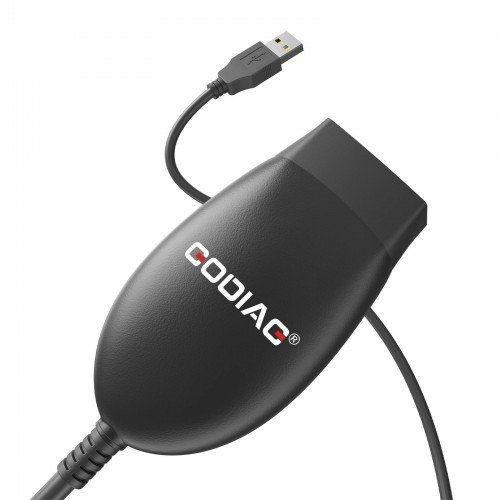

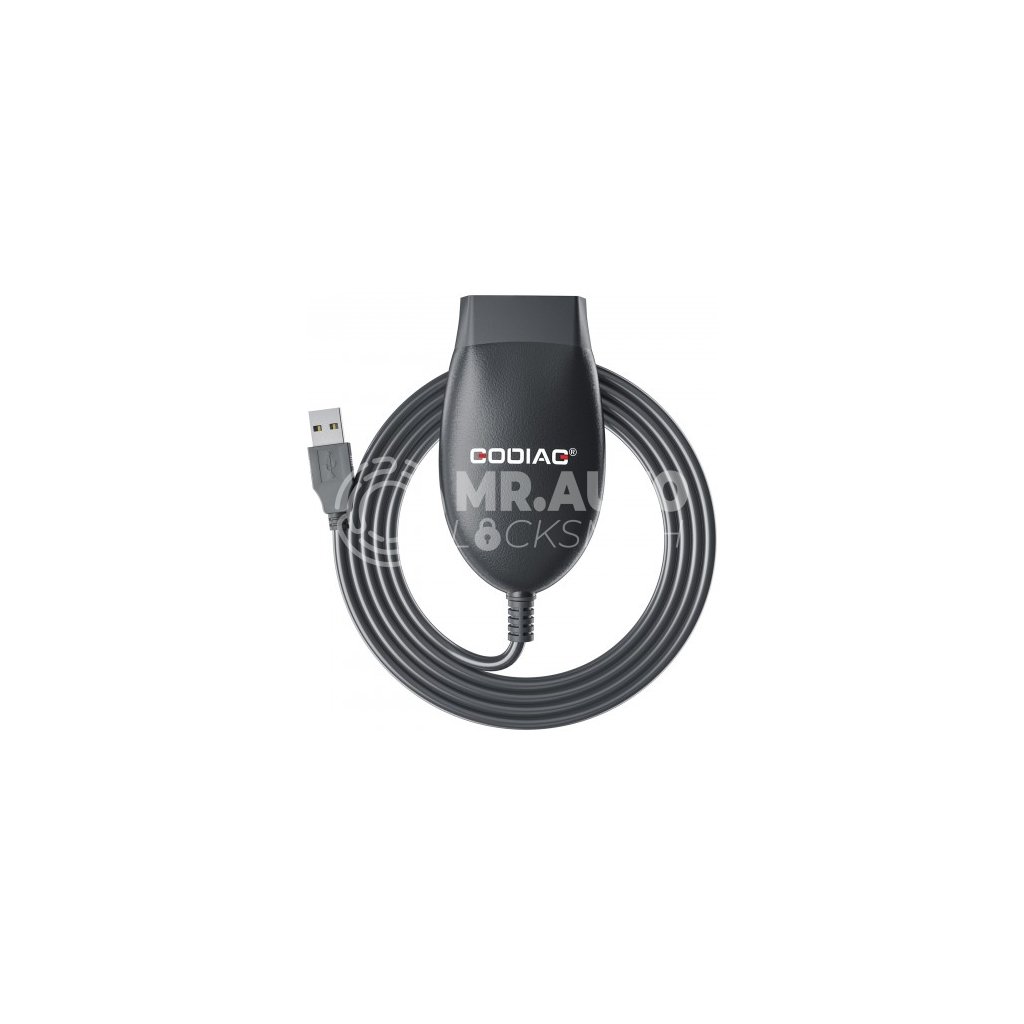

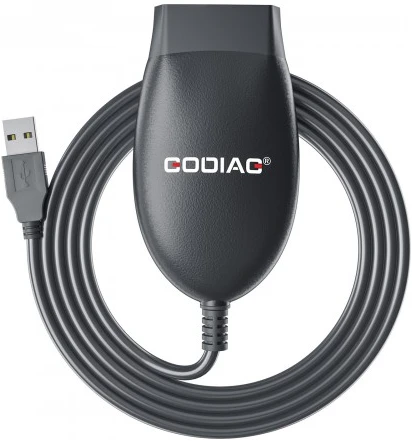

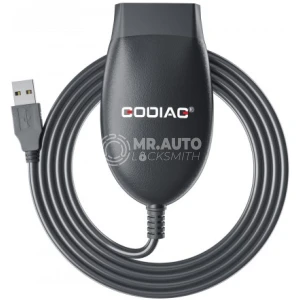

GODIAG GD101 J2534 Passthru Diagnostic Cable

Description

SKU	ALK12436
Category	Diagnostic Tools, Cables
Manufacturer	Godiag
Condition	New

Product Functions:

1. Support most all of J2534 compatible software(HDS, TIS, ODIS, …).

2. Support most all of ELM327 software(ELMConfig, Forscan, ScanMaster…).

3. Support ECU reprogramming in J2534 mode with programming voltage.

4. Supply free software for diagnosing J1979 compatible vehicles.

5. Support Windows 8/10/11, 32/64bit
Note: Software can not be installed on virtual machine

6. Supported languages:

odis: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,

Russia, Greece, Chinese

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

jlr sdd: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

Product Highlights:

1. Support J2534 and ELM327 mode in one device. Switch mode automatically.

2. More speedup. Faster communication and reprogramming.

3. More stability. Never let you down while reprogramming.

4. Portable and convenient. Small package and easy to carry.

GODIAG J2534 protocol configuration:

1. ISO15765 (Standard/Extended frame).

2. ISO9141.

3. ISO14230.

4. J1850 PWM (Support IFR and 2X speed mode).

5. J1850 VPW (Support 4X speed mode).

6. Programming voltage.

7. Short to ground.

8. ELM327 with command set version 1.3a

Notice :

Can’t support MS-CAN

GODIAG J2534 hardware configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).

2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).

3. J1850 PWM (OBDII PIN 2 and PIN 10).

4. J1850 VPW (OBDII PIN 2).

5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).

6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).

7. Dimension(L*W*H): 95mm*55mm*23mm

8. Environmental:-20℃-45℃(-4℉-113℉)

9. Vehicle voltage requirements: 8-18V DC

10. Vehicle connection: Molded DLC3(OBDII-16)

11. Host connection: USB 2.0

GODIAG GD101 J2534 Supported Car Models:

1.JLR SDD Software for Land Rover/Jaguar
Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines.
Support for X100, X150, X202, X250, X350, X351, X400 Jaguar vehicle lines.

2. HDS Software for Honda
Support for Accord, Civic, Crv, City, et al.

3. Toyota
Support for Camry, Rav4, Carolina, Prius, Lexus

4. ODIS VAG
Support for Vw, Audi, Seat, Skoda

5. GM GDS2 Software
Support for Buick, Chevrolet, Cadillac, etc.

How to usd the GODIAG GD101 J2534?

Notice:

1. Software Free Download:
Free Download Godiag J2534 Software
2. For PCMFlash 1.20, will need to buy a PCMtuner Dongle. And only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.
3. Not Support Win7 System

GODIAG J2534 Software Firmware Upgrade Notice（March 31, 2023）

1. Software upgrade to 2.1
2. Firmware upgrade to 1.8
Solve the following problems：
1. In J2534 mode, the sending length of J1850VPW is extended to 4128
2. PyOBD software cannot be connected in ELM327 mode
3. ELM327 mode cannot read ISO9141 VIN

GODIAG GD101 J2534 PCB Display:

Open the startup software, connect the device, and click upgrade firmware.

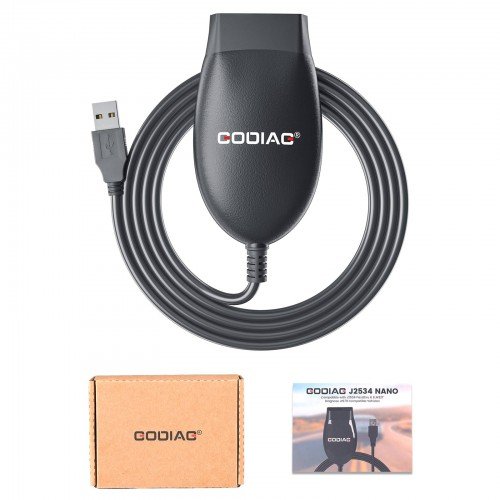

Package Includes:

1pc x GODIAG J2534
