Description

How It Works

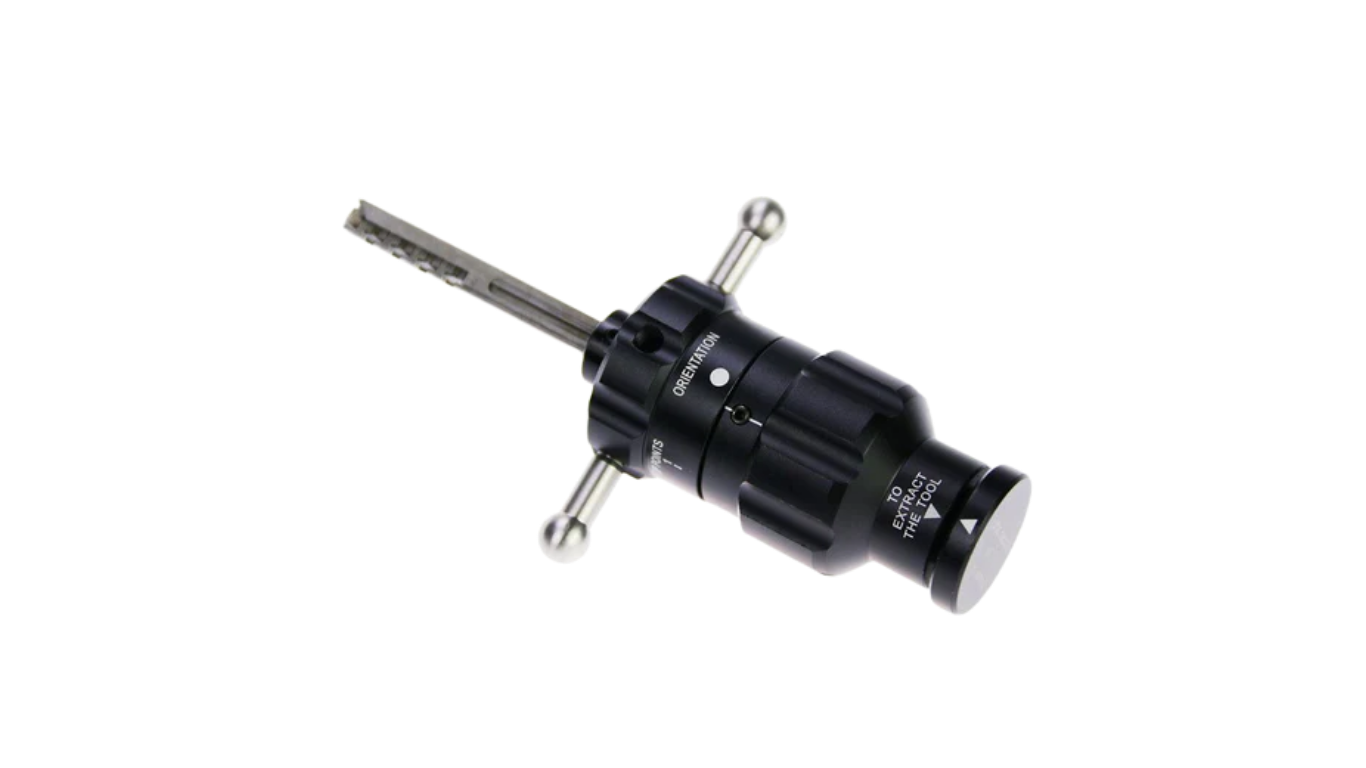

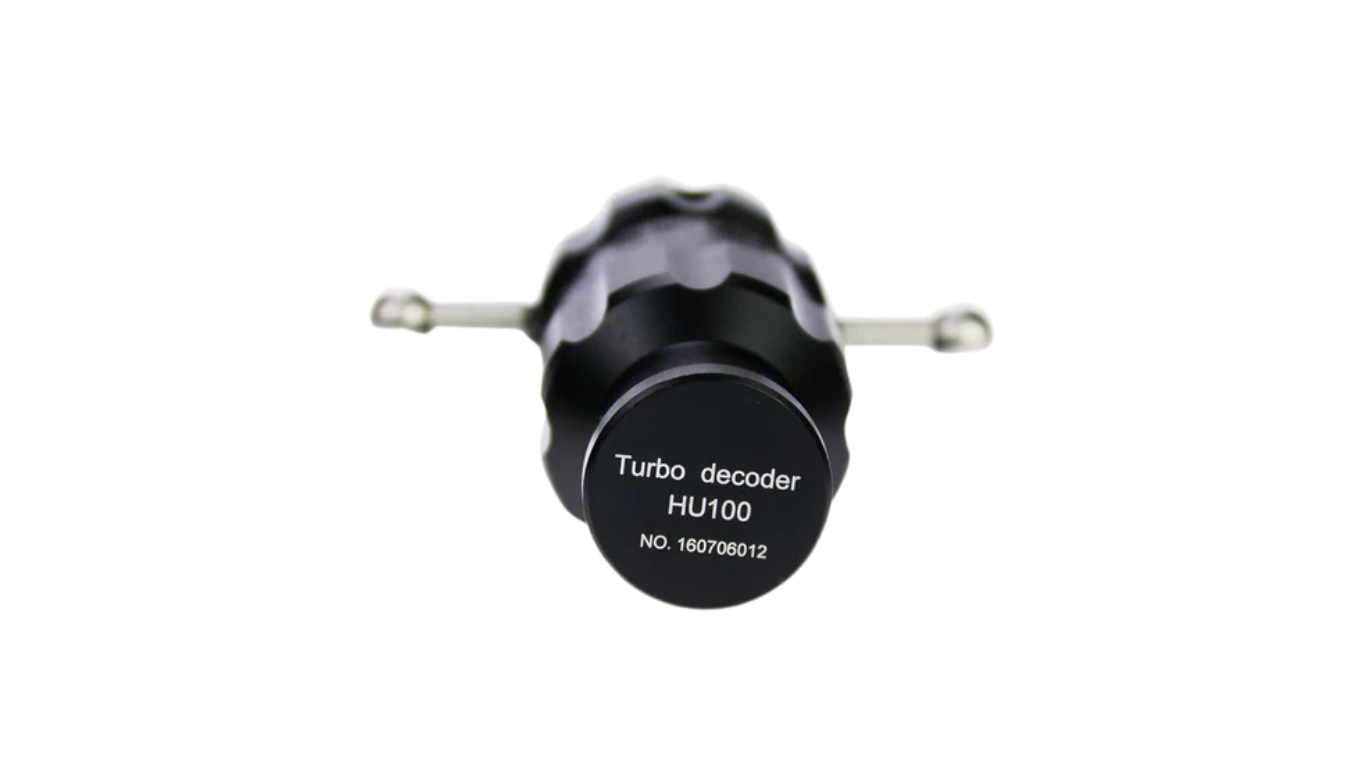

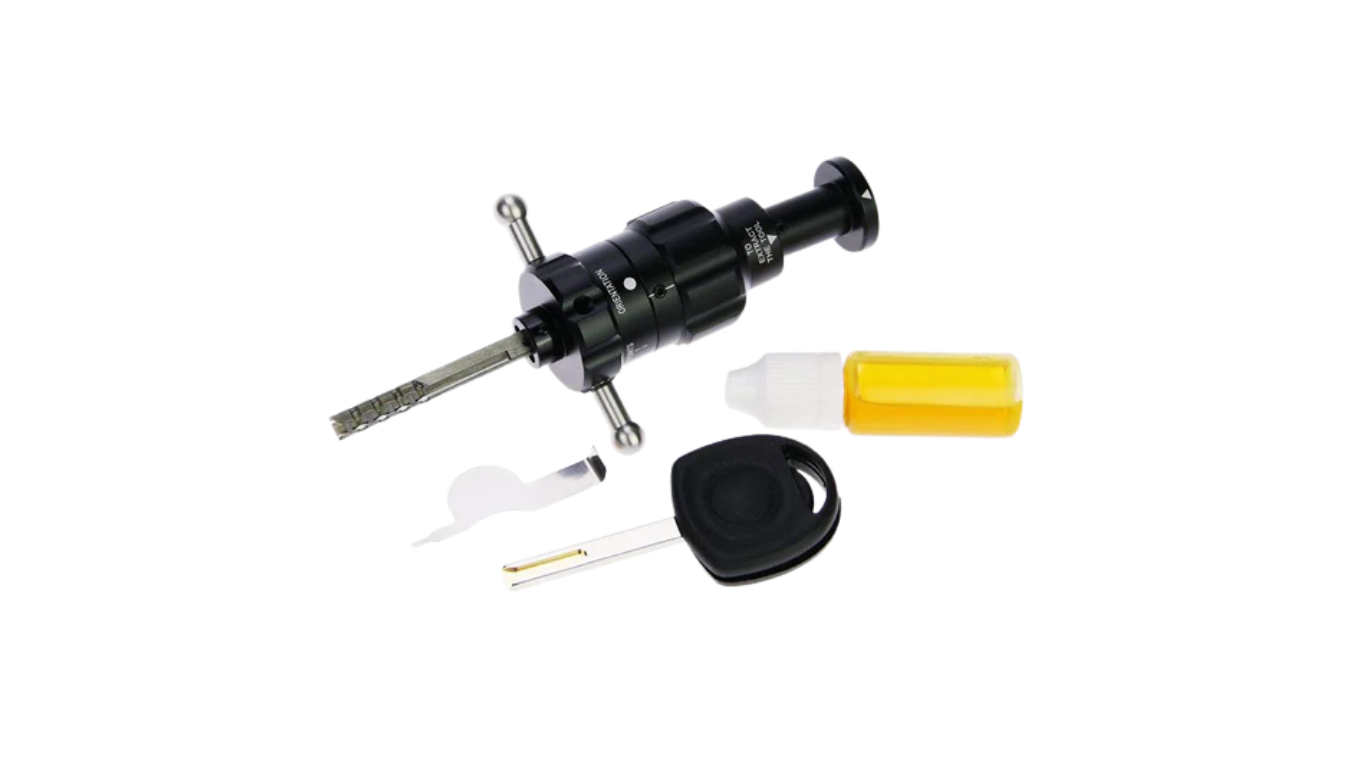

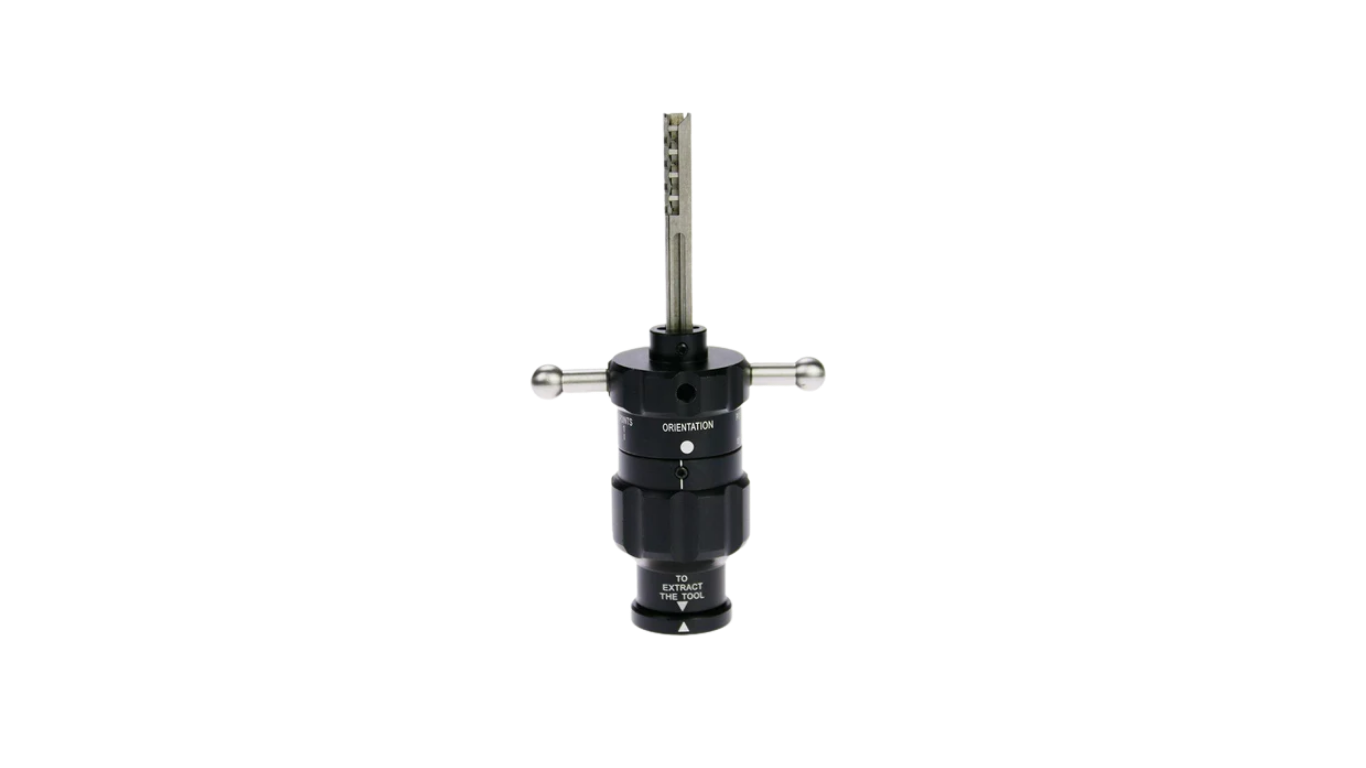

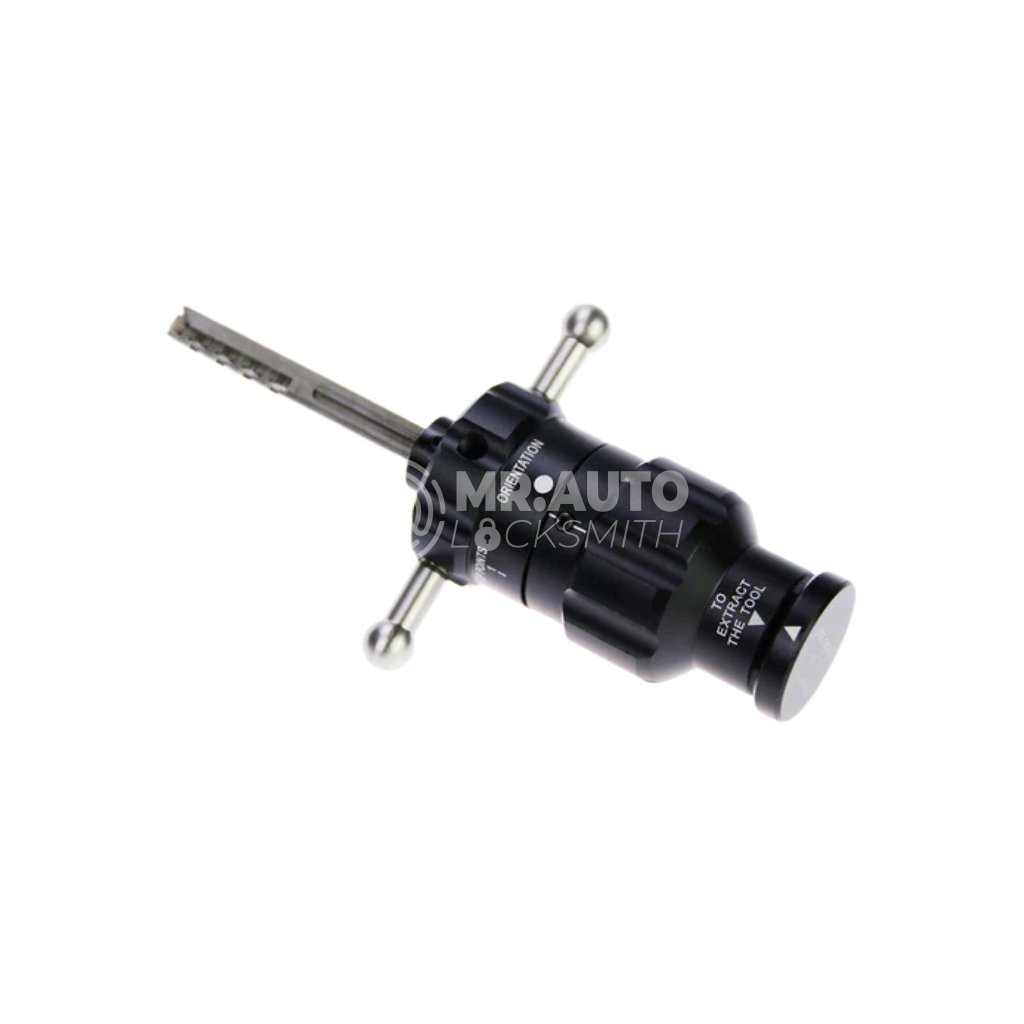

Original Turbo Decoder HU100 Features

The original Turbo Decoder HU100 includes these main parts:

• Key Profile – Designed for opening and decoding HU100 door and ignition locks used in Opel, GM, Vauxhall, and Chevrolet vehicles.
• Sliding Pins – Used to open the lock and read the lock code.
• Pin Bar – Helps insert and remove the tool smoothly.
• Tension Wheel – Applies turning pressure during unlocking.
• Pin Activator Wheel – Controls movement of the pin bars.
• Turbo Wheel – Moves the pins to match the lock code.

Before Use

For best results:

• Clean the lock using WD40 to remove dirt or dust.
• Confirm the vehicle uses the HU100 key profile.
• Make sure the lock is original and not a low-quality replacement.

Lock Direction Check

HU100 locks can be left or right side.

1. Insert the tool fully into the lock.
2. Push the turbo wheel forward.
3. If it moves deeper, remove it, flip it, and try again.
4. If correct, the tool will stay firm inside the lock.

Opening Instructions

1. Hold the tool from the activator ring.
2. Turn the turbo wheel fully right.
3. Insert fully into the lock.
4. Pull back the activator wheel until positions 3, 2, 1 appear.
5. Apply left turning pressure.
6. Turn the turbo wheel left to stop point 1.
7. Return right and release pressure.
8. Repeat left and right pressure for 20 cycles.

If still locked:

• Move to stop point 2 and repeat 20 cycles.

If still not open:

• Move to stop point 3 and repeat 10 more cycles.

Decoding the Lock

Once opened:

1. Turn the lock left or right.
2. Keep light pressure applied.
3. Pump once to stop point 3.
4. Gently move the tool along the blade line.
5. The lock code transfers to the pins.

Safe Removal

1. Return lock to neutral position.
2. Turn turbo wheel fully left.
3. Push activator wheel fully forward.
4. Remove the tool carefully.

Reading the Code

1. Pull back the activator wheel.
2. Turn turbo wheel to stop point 3 or 4.
3. Read the visible pins in order.

This lock has 8 discs, with cuts 1, 2, 3, or 4.

Example code: 11223312

Use the code in your key cutting machine to make a replacement key.

Resetting Pins

Before next use:

1. Turn turbo wheel to stop point 1.
2. Pull activator back.
3. Use HU100 reset tool.
4. Press each pin gently back into place.

Do not use excessive force. Pins move easily.
