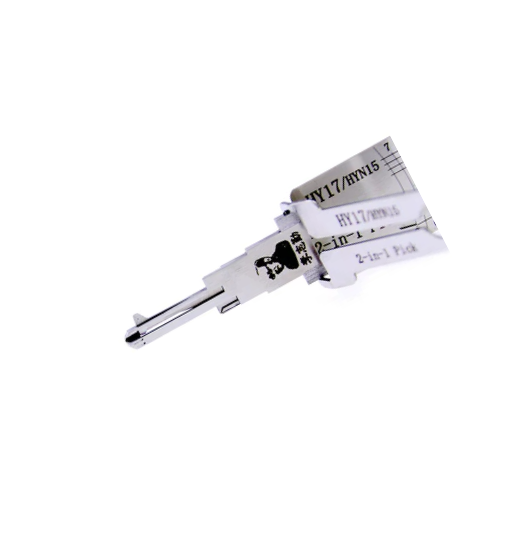

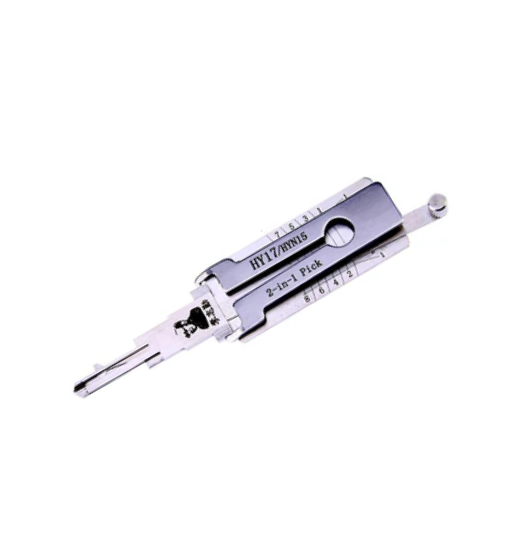

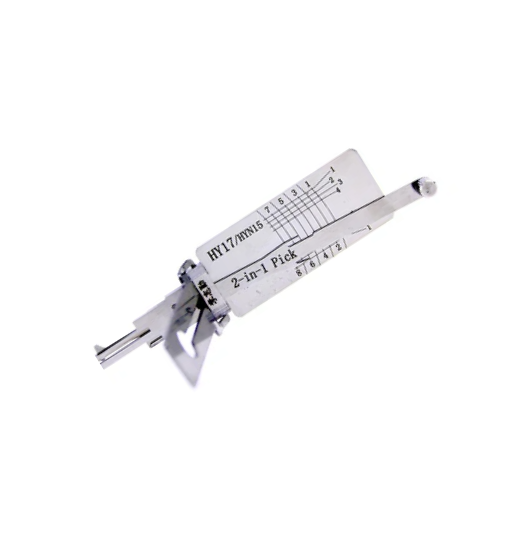

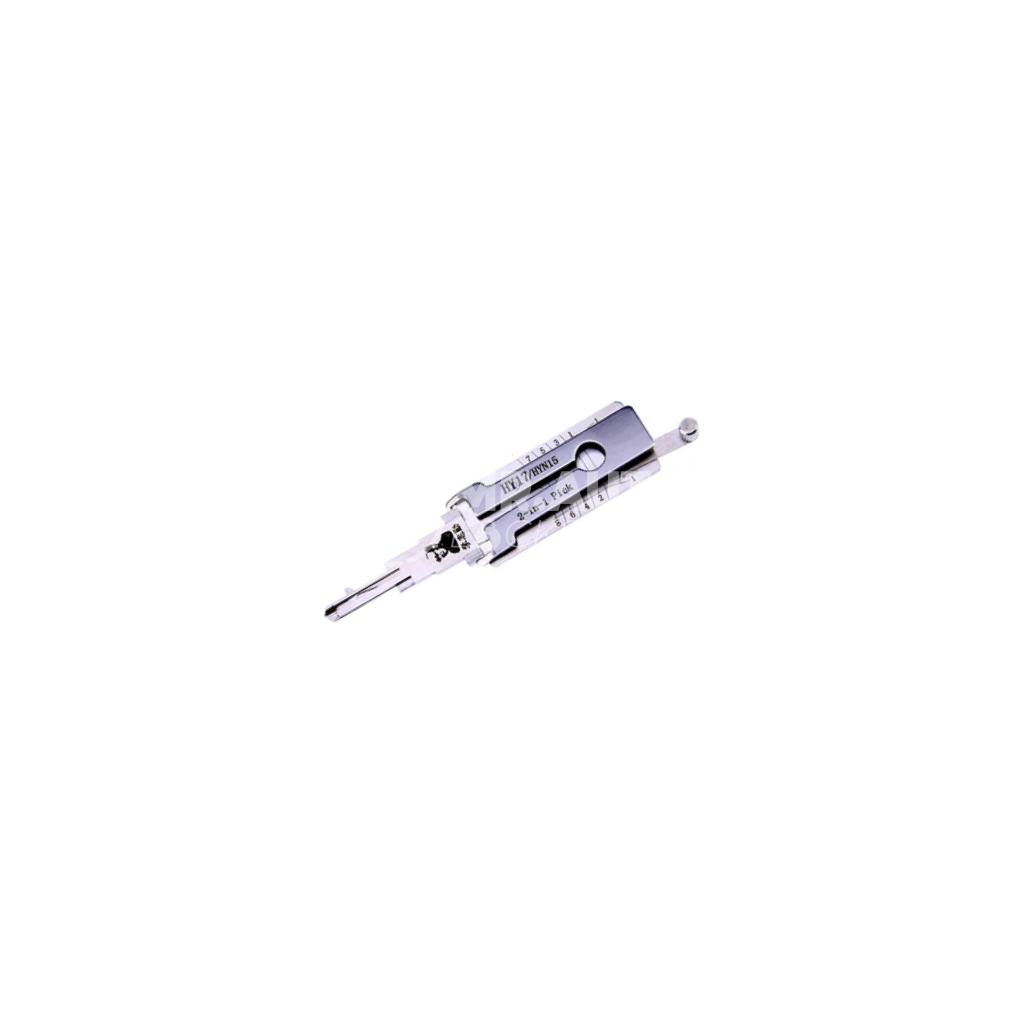

HY17/HYN15 Original Lishi HY17/HYN15 2-in-1 Decoder and Pick for Hyundai, KIA

Description

Vehicle Reference Guide (Guidance Only)

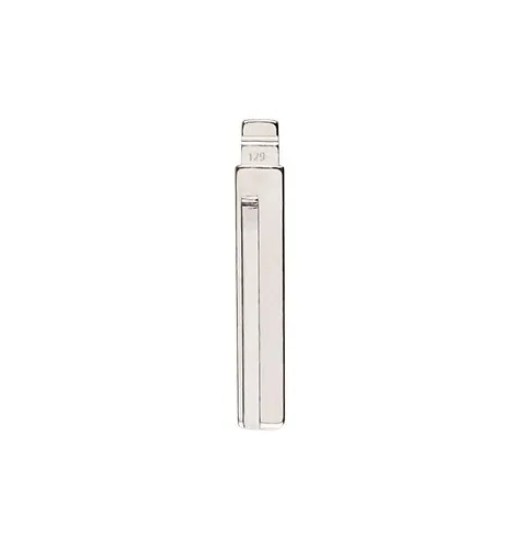

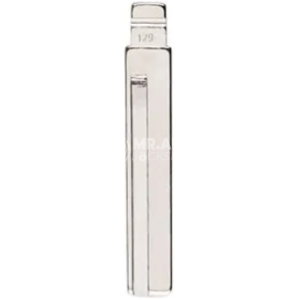

HYN17 Key Blade Specifications

• Type: Double-track internal laser-cut key.

• Cut Positions: 8 positions.

• Depths: 5 possible cutting depths.

• Depth Numbering: Depths are usually labeled 1, 2, 3, 4, and 5 (Note: 1 is the deepest).

• Lishi Compatibility: Can be opened and decoded using the HY20 / HYN17 Lishi tool.

Professional Tips for Opening HY20/HYN17 with Lishi

• Tension: Apply light to medium tension for these locks.

• Instacode Variation: Be aware that in Instacode, the cutting depths may be reversed (e.g., $1=5, 2=4, 3=3, 4=2, 5=1$). Always verify the software’s depth logic before cutting.

• Difficulty Level: These high-security locks are generally considered relatively easy to pick and open compared to other laser-cut systems.

• Decoding Protocol: Always decode the lock in the same direction in which it was successfully picked/opened to ensure the wafers are properly seated for an accurate reading.
