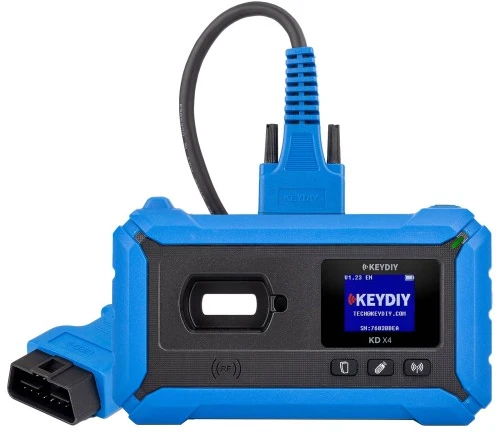

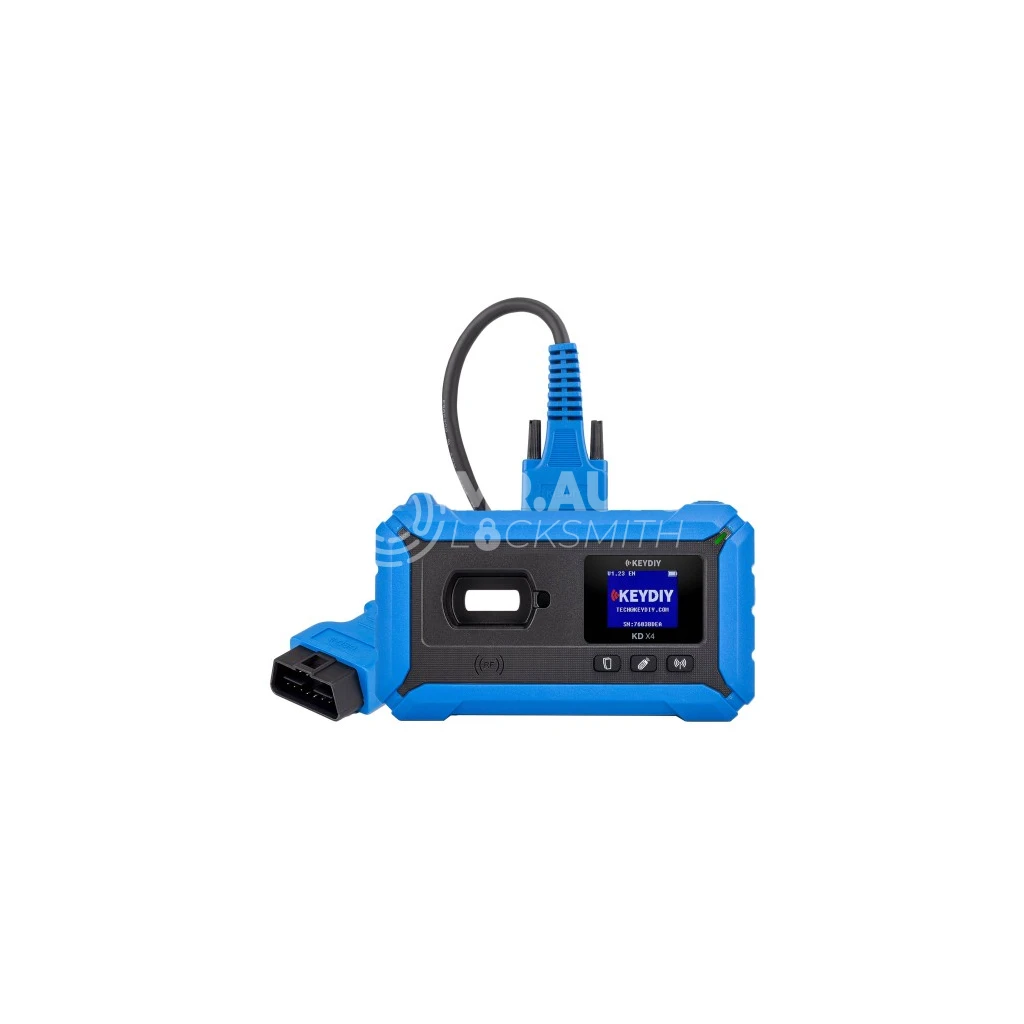

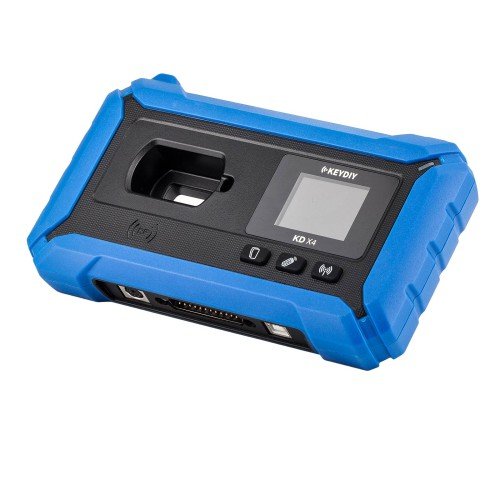

KEYDIY KD-X4 KDX4 5-in-1 Key Programmer Combines KD Max, KD Mate and KD Mini Prog
KEYDIY KD-X4 Introduction:
KEYDIY KD-X4 is a professional device that integrates recognition, generation, copying, programming, and matching. It can be operated independently, or connected to tablets, mobile phones, and PC software in multiple free modes. Locksmith can choose the mode of operation that suits their own usage habits. Exclusive priority release of some industry-leading features.The device supports frequency detection (supporting 2.4G), remote control generation, remote control simulation, key-less remote simulation, remote control copying, chip recognition/copying, chip generation, chip acquisition, key unlocking, immo programming, programmer reading and writing data, online upgrading and other functions. It has become a professional device for locksmith with simple operation, stable performance, and wide coverage of car models.
KD-X4 Combines Functions Of: KD master + KD MAX + KD MATE + KD MINI PROG
KEYDIY KD-X4 Features:
A new DB25 Adapter has just been released to make your job easier.
Remote Generation: Supports 5600+ remote control program generations.
Toyota Rollin-Code Bypass + MQB Key Programming: For 2019+ Toyota models.
Remote Copying: Compatible with 50+ car models.
Key Simulation: Simulates remote controls and smart keys.
Frequency Detection: Detects 315M, 433M, 467M, 868M, 902M, and 2.4G frequencies.
Anti-Theft Chip Recognition: Supports MLB, 5C, 46, 47, 48, MOB48, 4D, 4C, 8A, 6A, 4A, 8E, 8C, 13, 11, 12, 7935X, 49, 33/40-44 AUDI5 ID card IC card.
Specialized Chip Generation: Generates Toyota G, NB multifunctional, 30/40-44, 48, 4D/4C, Toyota 8A/H, and 46 specialized chips.
Chip Acquisition: Supports device acquisition antenna, external acquisition antenna, and built-in acquisition enhancer for BYD all-key-lost scenarios, OBD 48, and more.
Key Unlocking: Works with 36 different brand keys.
Battery Voltage Detection: Tests 3V remote key battery voltage.
Key Leakage Detection: Identifies 3V remote control key leakage.
Second-Hand Remote Programming Without Unlocking: Supports Toyota/Lexus 8A-AA, BA, 4A-type used key unlock-free programming.
Immo Programming: Compatible with 51+ brands, with continuous updates.
Programmer Function: Reads immo data from Volkswagen Audi MQB dashboards.
Using the KEYDIY KD-X4 is straightforward and user-friendly. Follow these steps to get started:
Chip Recognition Button:
Press to enter the chip detection function.
Long press to access the function-switching menu, where you can select:
Chip Recognition
Ignition Coil Detection
System Settings
Remote Copy Button:
Press to enter the remote normal copy function.
Long press to access the function-switching menu, where you can select:
Normal Copy
Special Copy
Remote Data Comparison
Frequency Detection Button:
Press to enter the frequency detection mode within 315MHz.
Long press to access the function-switching menu, where you can select:
Frequency Detection within 315MHz
433.92MHz Frequency Detection
Battery Voltage Detection/Leakage Detection
(Refer to Figure 3 on the right)
Key Induction Coil and IMMO Chip Placement Hole:
Used for identifying and copying car key IMMO chips.
Can also generate KD remotes wirelessly.
Frequency Detection Area:
Place the key in this area and press the remote control button to detect the frequency.
Power Indicator Light:
Power On Status: Indicator light flashes.
Charging Status: Indicator light stays on and turns yellow.
Fully Charged Status: Indicator light stays on and turns green.
Display Screen:
Displays device information, key information, and more.
USB Interface:
Used for charging or connecting to mobile phones or PC terminals via a wired connection.
Programmer Interface:
Used to read data from Volkswagen MQB dashboards, Audi dashboards, BCM data, and various octagonal chip EEPROMs.
Wired Programming Interface:
Used for KD wired remote generation, unlocking original keys, detecting remote battery voltage, and leakage detection.
Collecting Antenna:
Collects car ignition data, tests ignition coils, performs chip simulation, and other functions.
External Acquisition Antenna Interface:
Used for collecting car ignition data, ignition coil detection, chip simulation, and similar functions.
Toyota Adapter Cable Interface:
Used for Toyota/Lexus smart key all-key-lost scenarios.
OBD Main Cable Interface:
Connects the external OBD II cable to the car.
Works with the Mobile KD App to enable programming functions.
| Battery capacity | 3.7V 3500MAh |
| Input power | 12V/24V/5V 1A |
| Working temperature | -30-50 degrees Celsius |
| Storage temperature | -40-60 degrees Celsius |
| Display | 1.8-inch color screen |
| Size | 200X120X40MM |
| Connectivity | Blooth, USB2.0(TYPE B) |
KEYDIY KD-X4 Function Activation Fee:
| Function / Service | Activation Fee | One-time Fee | Fee Deduction Rules |
|---|---|---|---|
| Volvo Programming (Semi-smart key, 8A smart key) Dismantle and read the CEM data | 3500KD-Coins/75USD | No Need | * |
| BMW G Chassis Programming + BMW FEM Match | 5000KD-Coins/75USD | BMW G: 200KD-Coins/4USD BMW F: Free | When generating the dealer key |
| Toyota Second-hand Key Programming (without Unlocking) | No Need | 200KD-Coins/5USD | When generating the KD key |
| 96 bit 48 copy | No Need | 100KD-Coins/10USD | When calculating the data |
| MLB Programming | First account bound to this platform is free. Each additional account: 1000KD-coins/15USD | 200KD-Coins/3USD | When generating the dealer key, same ID is free to charge |
| Read the Code of Yamaha ECU | No Need | 200KD-Coins/2USD | When calculating the data |
| MQB Match/ Audi BCM | 2500KD-Coins/75USD | No Need | * |
| All Key Lost of BYD | No Need | 100KD-Coins | * |
