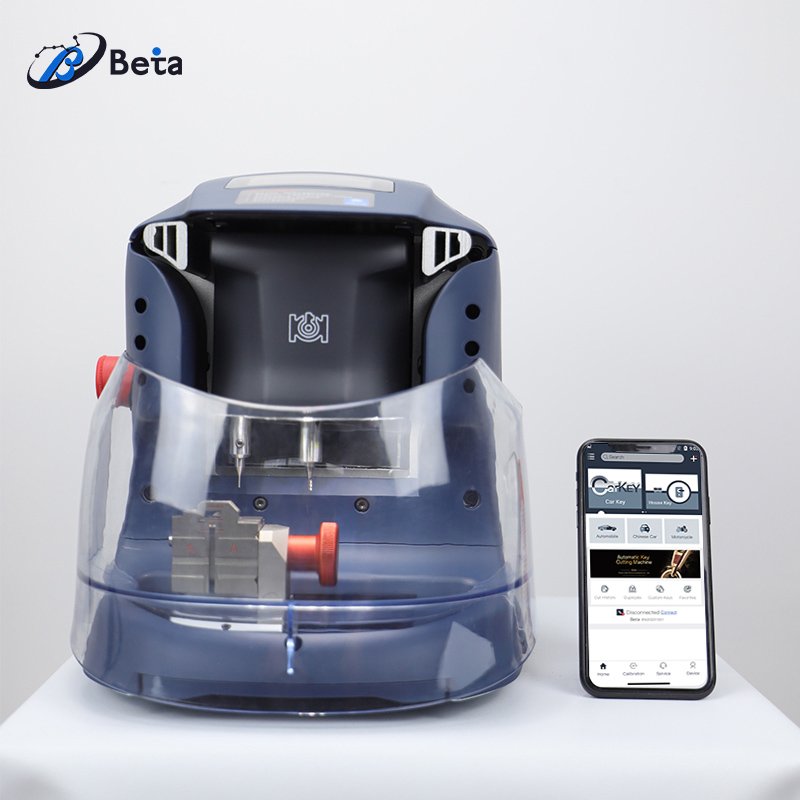

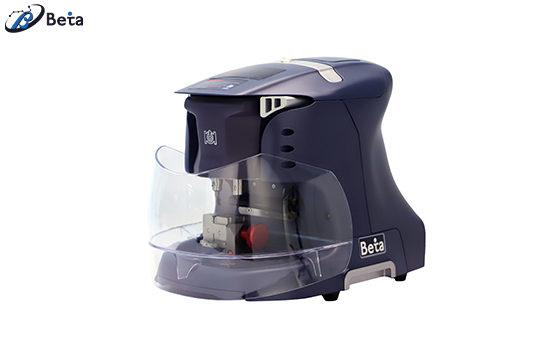

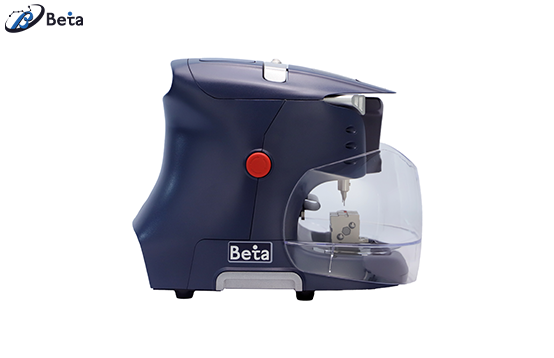

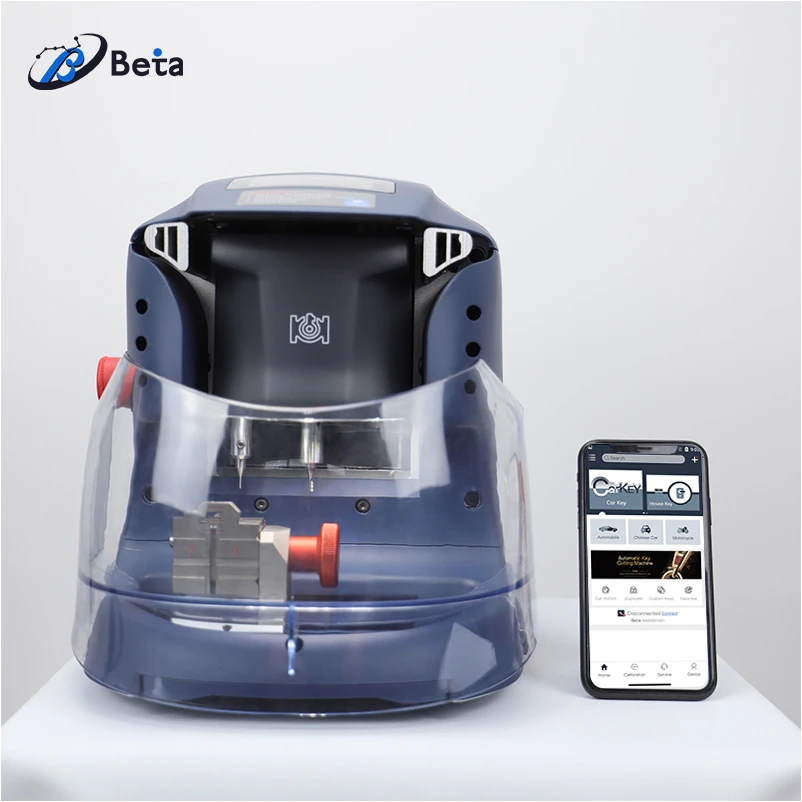

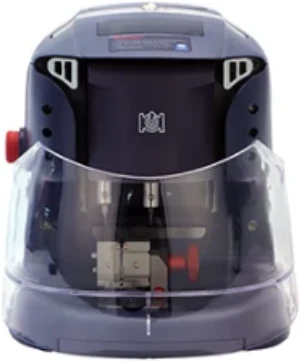

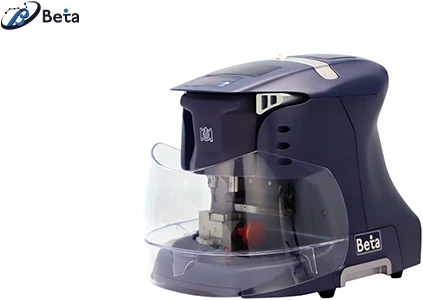

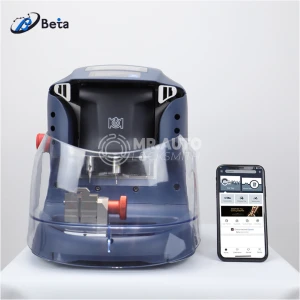

KUKAI Beta Automatic Key Cutting Machine

Feature of Beta key cutting machine

A. 14kg can be carried by one hand,lighter and easier to move

Pressed handle hidden in machine,more beautiful and more portable

B. LED under spindle moves with the working area, more flexible and humanization

Equipped with both decoder and cutter

Quick and easy duplication is available

C. Optional 12V car cigarette power cord connects machine with vehicle cigar jack for mobile locksmith,more portable

D. Equipped with tool box to place decoders,cutters,calibration blocks and key blanks etc.

E. High power brushless DC motor controls the cutter directly,bringing higher output torque,more powerful cutting,less noise and longer lifetime

F. KUKAI Beta is for overseas market with 16 different language for your option, including English, Czech, French, German, Italian, Spanish, Korean, Portuguese, Russian, Turkish,

Hebrew, Polish, Persian, Vietnamese, Thai and Arabic.

Software of Beta key cutting machine

1. Support to cut various keys,including:

Automobile keys,Motorcycle keys,Chinese car keys,Residential keys,Dimple keys,Tubular keys etc.

2. S1 jaw(4-way jaw) cuts standard & laser car keys and dimple keys (optional dimple decoder and cutter).

AB side for laser keys, B side for dimple keys (Mul-T-Lock keys, optional dimple decoder and cutter)

CD side for standard keys

3. Key code search supported

Can directly input the key code to find biting number for cutting in the machine

4. Key photographing supported

Assisting reading key bitting number by camera

5. Key progression supported

It works know the “unknown bitting number” by the big base in Beta, so it’s very help when you want to make key without knowing complete bitting numbers, especially when all

keys lost, it will help you to work efficiently

6.Support to duplicate keys without key data in database

Including: single standard, double standard, single external groove, double external groove, internal groove,tubular keys, double-track internal groove and triple-track internal

groove etc.

7. Support to cut a new key when lost the original keys

8. Support to custom keys by yourself

Including:single standard, double standard, single external groove, double external groove, internal groove,dimple keys and tubular keys etc.

9. Support to save the needed key data in favorite list

There is no store limitation for favorite list, you can save the poplar key data or import customer information based on your needed, in this way, you can create your personal

management system of data and customer.

10. Support to cut new Honda keys

If you already purchase S2 jaw, we will suggest to cut it by S2 jaw, there will be only 1 step and it will be more convenient & accurate

If you don’t have S2 jaw, you can cut on S1 jaw as well, there will be 2 steps, but you don’t need to purchase another jaw for cutting this keys.

11.  Equipped with both decoder and cutter

No need to do height calibration after changing any cutters.

12. Support to duplicate double-track internal groove and triple-track internal groove keys;

Note: This function are working on Beta machine that the 7th number is “6” e.g. EW18016001

13. Support to export and import data

A. You can export your data under Cut history or/and favorite to the cloud

B.You can input the serial number and code to import the exported data to the re-download APP.

And when to use?

• Log in the APP in another cellphone
• Before delete and re-download APP
• Share data to other persons

14. Support to cut Non-conductive keys

Such as plastic HU66 key blank for Volkswagen Magotan and aluminum HU101 key balnk for Volvo V60, Land Rover and Jaguar

Take HU66-ID: 909 (Bitting number: 33431222) as an example

Note: If you don’t have bitting number, you can try to use “Photograph” function to decode

Real shots detailed focus

Safer, Faster and More Precise Cutting

Different ways to find the key data
