No.	Brand	Model	Year Range
1	Pontiac	Vibe	2003 – 2010
2	Scion	FR-S	2013 – 2016
3	Scion	iQ	2012 – 2014
4	Scion	tC	2005 – 2015
5	Scion	xA	2004 – 2007
6	Scion	xB	2004 – 2014
7	Scion	xD	2008 – 2014
8	Subaru	BRZ	2012 – 2016
9	Suzuki	Aerio	2003 – 2007
10	Suzuki	XL-7	2003 – 2006
11	Toyota	Avalon	2005 – 2012
12	Toyota	Camry	2003 – 2017
13	Toyota	Celica	2004 – 2005
14	Toyota	Corolla	2002 – 2017
15	Toyota	Echo	2003 – 2005
16	Toyota	FJ Cruiser	2006 – 2015
17	Toyota	Matrix	2003 – 2014
18	Toyota	Prius	2005 – 2008
19	Toyota	Prius	2012 – 2017
20	Toyota	Solara	2004 – 2010
21	Toyota	Venza	2009 – 2014
22	Toyota	Yaris	2007 – 2018
23	Toyota	4Runner	2003 – 2018
24	Toyota	Highlander	2001 – 2018
25	Toyota	Land Cruiser	2003 – 2008
26	Toyota	RAV4	2003 – 2018
27	Toyota	Sequoia	2008 – 2017
28	Toyota	Sienna	2004 – 2017
29	Toyota	Tacoma	2005 – 2018
30	Toyota	Tundra	2004 – 2017

Blank Key Profile

TOY43 Key Blade

• Double-sided edge cut mechanical key
• 10 cutting positions
• 4 possible cutting depths
• Depths are usually indicated by numbers 1, 2, 3, and 4 (4 being the deepest)

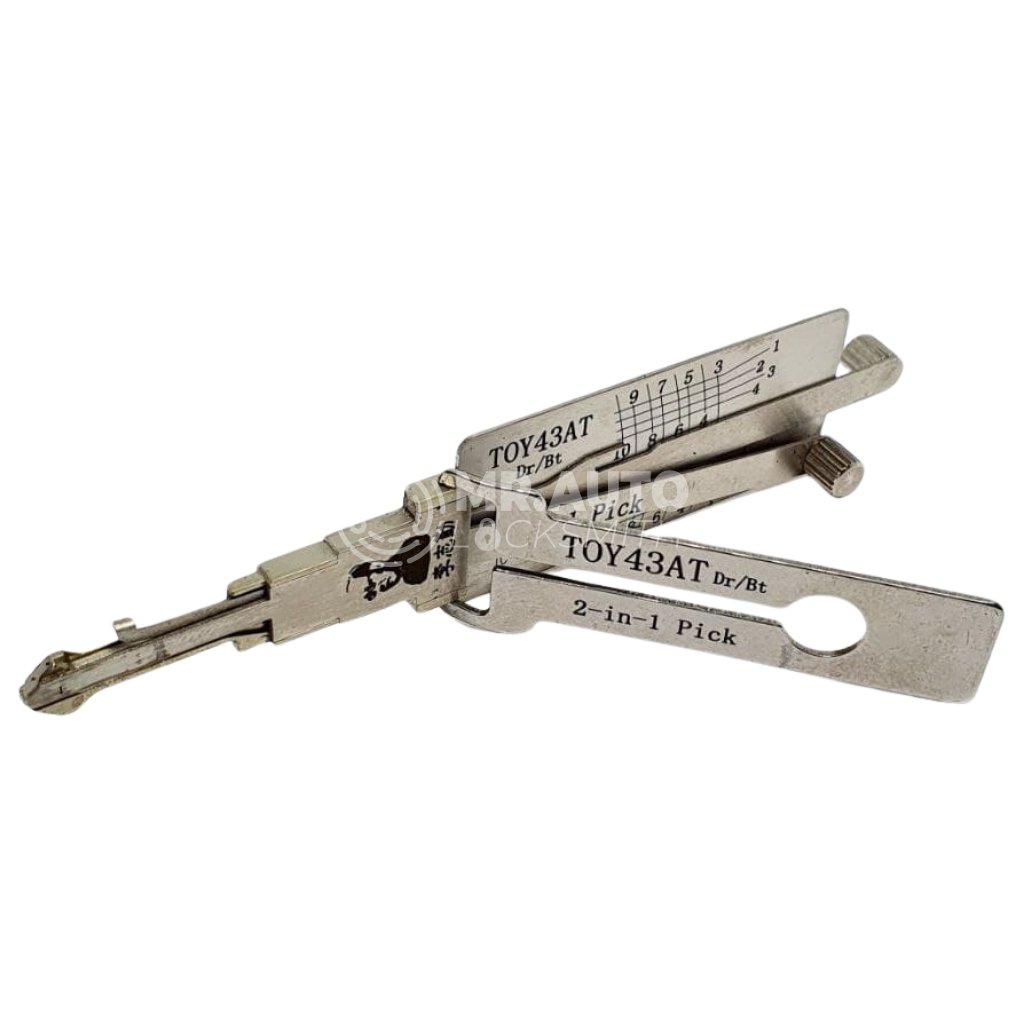

• Can be opened and decoded using the Lishi TOY43 tool

Lishi TOY43 Usage Tips

• Use light to medium tension when working on these locks
• Door locks typically have 8 wafers, while ignition locks have the full 10 wafers
• When decoding the door lock, read wafers positions 3 to 10, then use Instacode or Xhorse to determine the first two depths
• Decode these locks in the same direction as the opening direction



Important Note

• Toyota TOY43 locks come in two types:
  • 8-cut lock
  • 10-cut lock
• Each type requires a different Lishi tool
• Using a 10-cut Lishi tool on an 8-cut lock may cause the tool to jam inside the cylinder

👉 Always make sure to select the correct Lishi tool for the specific lock type.
