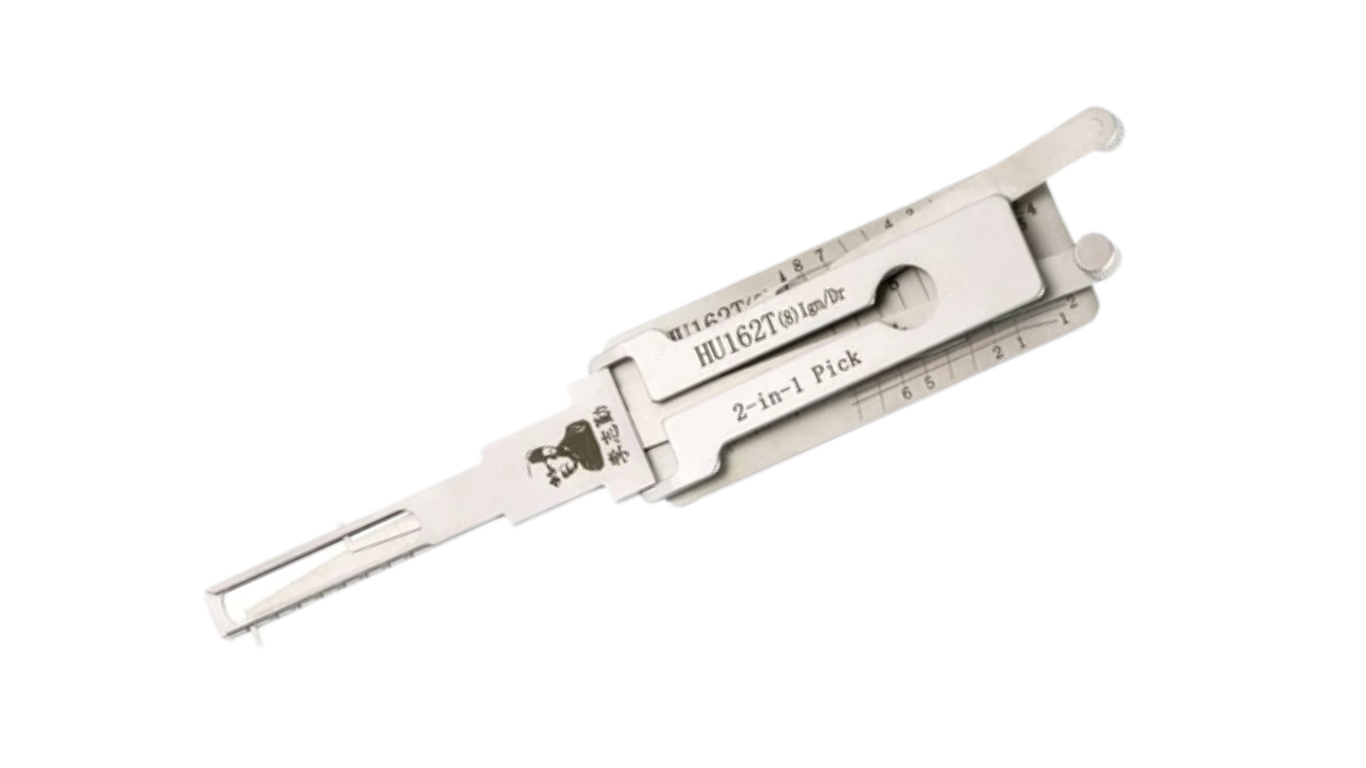

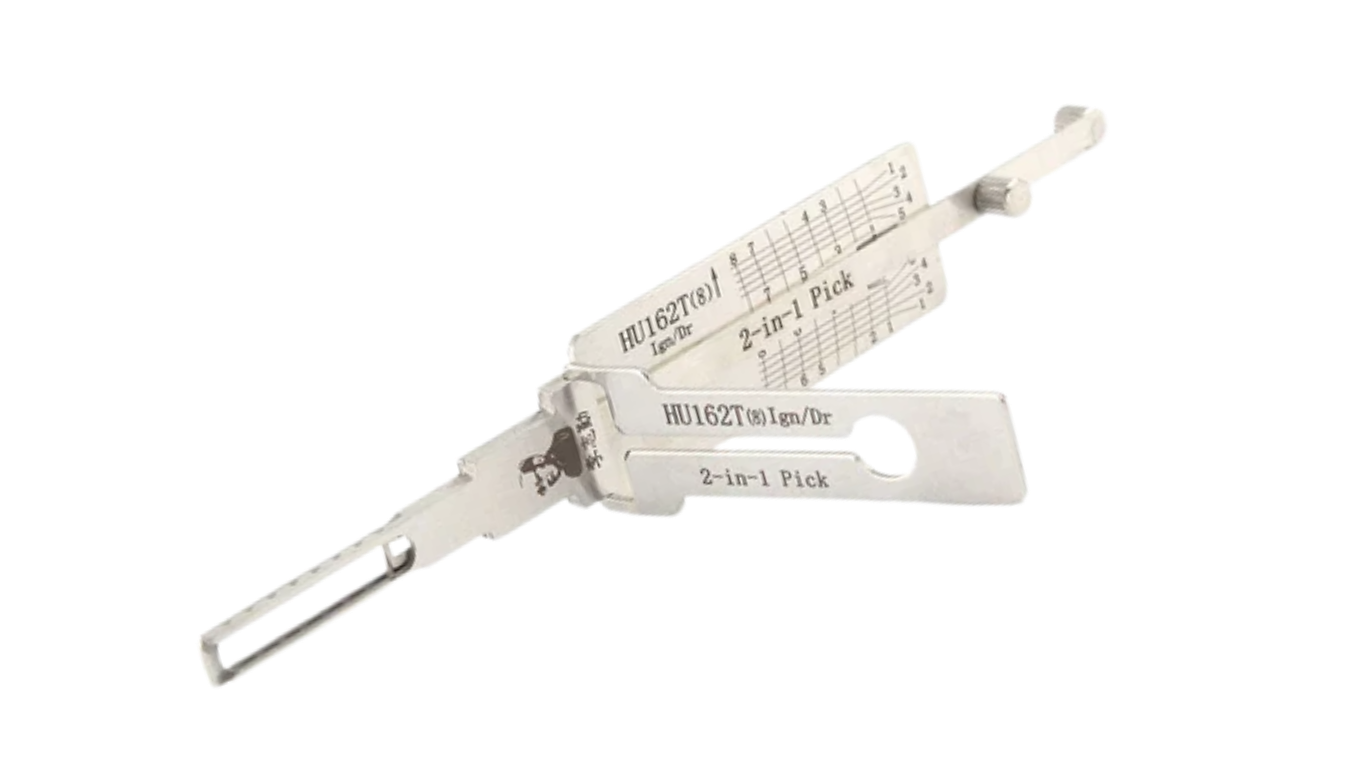

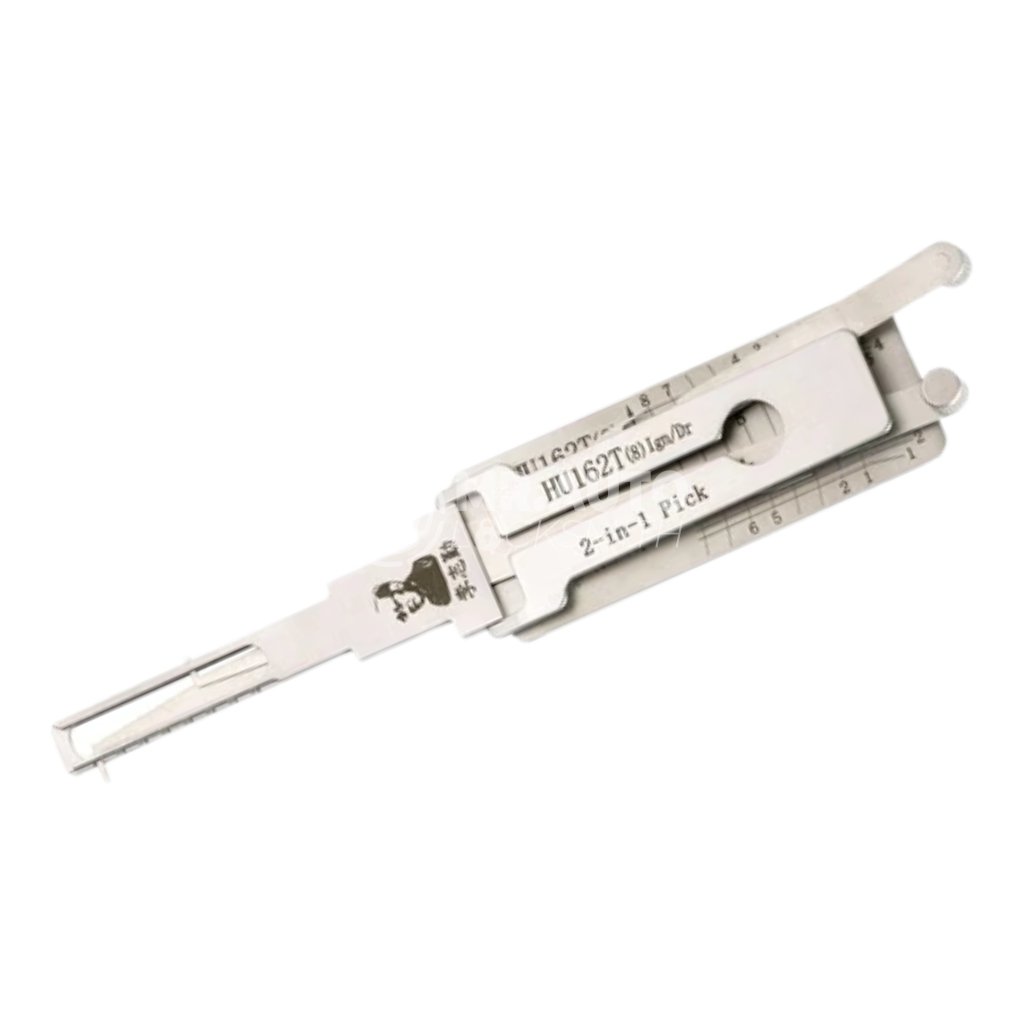

HU162T(8) Original Lishi 2-in-1 Decoder and Pick for Volkswagen 2015 Onwards

Description

Key Blade: HU162T (8-Cut)

The HU162T (8) is a specific variation of the modern VAG high-security system. Unlike the 9-cut or 10-cut versions, this model focuses on an 8-cut, 2-track internal configuration.

Technical Specifications

• Type: 2-Track Internal laser-cut key.

• Cuts: 8 total cutting positions.

• Tool Compatibility: Specifically designed for the Lishi HU162T(8) 2-in-1 tool.

• Application: Primarily used on door locks for newer VAG group vehicles where the side-cut profile is not present or required for the door cylinder.

Vehicle Reference Guide (Guidance Only)

Professional Usage Notes

• Tool Identification: Ensure you are using the (8) marked tool. Using an HU162T(9) or (10) on an 8-cut lock will result in incorrect spacing and a failed decode.

• Internal Track: This tool is designed to navigate the two internal tracks to set the 8 wafers.

• VAG Evolution: While many 2015+ models moved to the HU162T system, some transitionary models may still use the older HU66. Always visually inspect the keyway—the HU162T is significantly more complex in its internal milling than the HU66.

• Machine Setup: As with all HU162T variations, confirm if your key cutter requires “Actual” or “Reverse” depths before cutting your first blade

The HU162T (often referred to as the VAG2015 blade) is the modern standard for the Volkswagen Audi Group. It is a highly sophisticated internal laser-cut system that replaced the long-standing HU66.

Technical Specifications

• Type: Internal double-track laser-cut key.

• AKA: Often labeled as the “VAG 2015” keyway.

• Positions: Can contain either 8 or 10 cutting positions depending on the specific lock configuration.

• Depths: 5 potential cutting depths, labeled 1, 2, 3, 4, and 5 (5 being the deepest).

• Tool Compatibility: Designed for use with the Lishi HU162T (VAG2015) 2-in-1 tool.

Professional Tips for Using the Lishi HU162T

Precision is critical with this keyway due to the tighter tolerances of modern VAG locks.

• Opening Direction:

  • Left-Hand Drive (LHD) Models: Turn clockwise to unlock.

  • Right-Hand Drive (RHD) Models: Turn clockwise to unlock.

• Internal Stamping:

  • The cuts are physically stamped onto the internal wafers. This means that if the lock is disassembled, the code can be read directly from the wafers.

• Decoding Direction:

  • Always decode this lock in the same direction that it was picked open.

• Key Cutting Note:

  • Important: Some automated key-cutting machines require you to reverse the depth numbers (e.g., 1 becomes 5) before inputting the code. Always check your specific machine’s software documentation for the VAG2015/HU162T series to avoid wasting key blanks.
