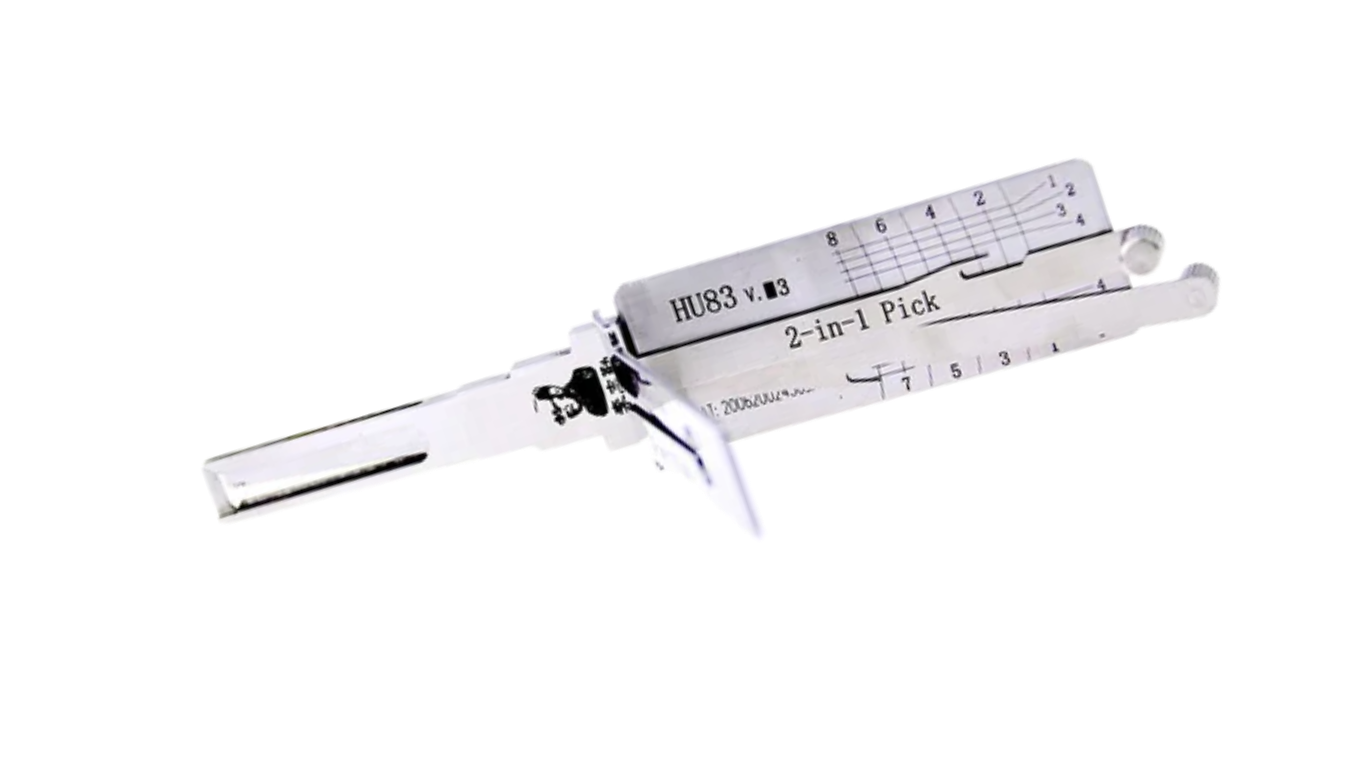

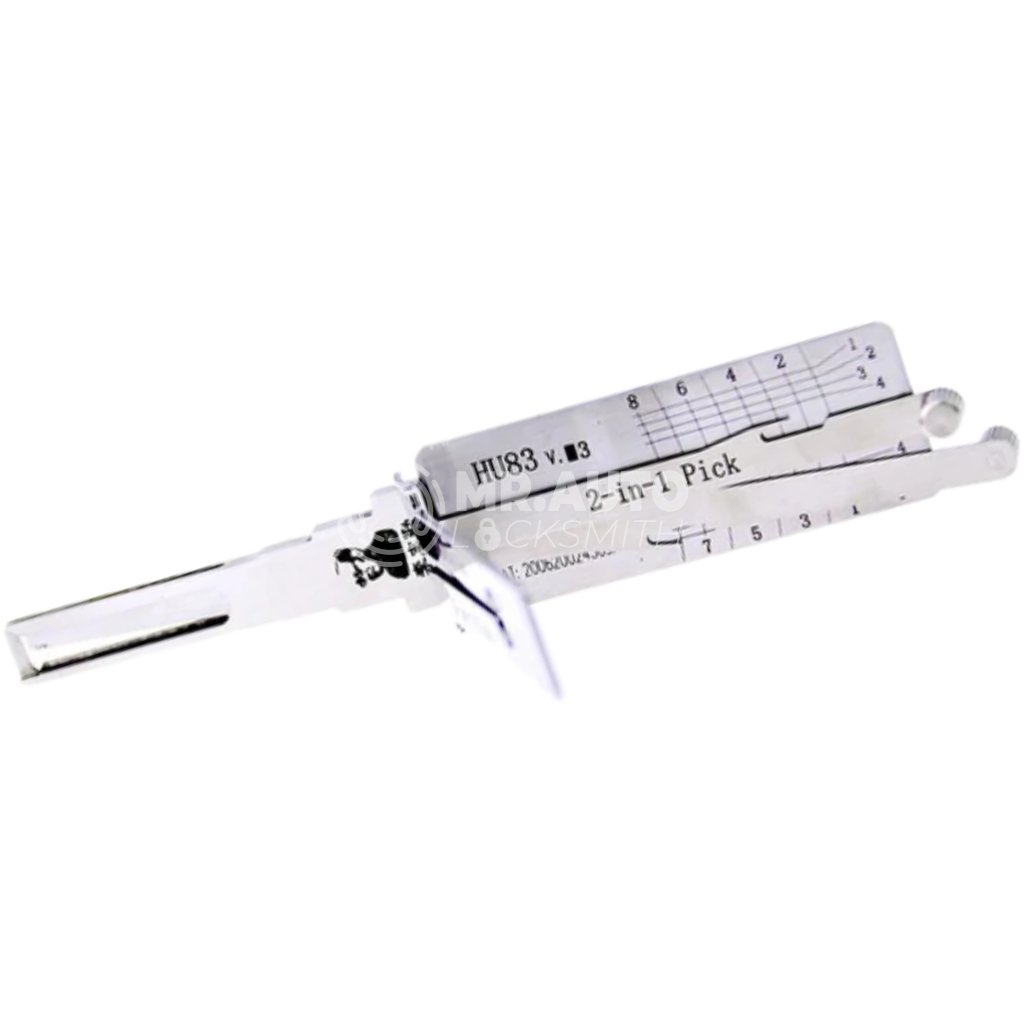

Original Lishi HU83 2-in-1 Decoder and Pick

The Lishi HU83 is a professional-grade tool designed for non-destructive entry and decoding of high-security automotive locks. It combines a precision pick and a depth decoder into one easy-to-use instrument.

Technical Specifications

• Tool Name: HU83 2-in-1 Decoder and Pick

• Key Profile: HU83 (2-Track Internal)

• Lock Type: 2-Track High Security

Vehicle Compatibility Guide

This tool is specifically designed for vehicles using the HU83 internal track system.

Primary Brands

• Citroën: Various models utilizing the 2-track internal profile.

• Peugeot: Widely used across the Peugeot model range.

Specific Models (Guidance Only)

• Mini Cooper: 2004 – 2011

Key Features

• Dual Functionality: Allows you to pick the lock open and read the bit heights (decode) without removing the lock cylinder.

• Precision Engineering: Manufactured by Mr. Li to ensure exact alignment with wafers.

• Efficiency: Designed to handle the unique 2-track internal track system found in French automotive manufacturing.

Note: Always verify the keyway profile visually before use, as manufacturers may change lock types within the same production year.

HU83 Keyway Guide: Specifications, Decoding, and Lishi Tips

The HU83 (2-Track Internal) is a high-security laser-cut key system commonly used by French manufacturers like Peugeot and Citroën. Using the Original Lishi HU83 2-in-1 tool allows for fast opening and precise decoding.

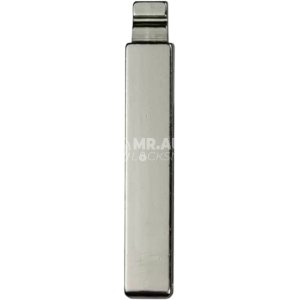

HU83 Key Specifications

To accurately cut or decode an HU83 key, you must follow these specific parameters:

• Key Type: Double-sided laser-cut key (2-track internal).

• Cut Positions: 7 distinct positions.

• Cut Depths: 4 possible depths.

• Depth Numbering: Marked 1 through 4 (where 4 is the deepest cut).

• Primary Tool: Designed for use with the Lishi HU83 (2-in-1) Decoder and Pick.

Tips for Opening HU83 Locks with Lishi

Because of the internal track design, these locks require a specific touch to avoid binding.

Expert Picking & Decoding Rules

• Controlled Tension: Always use light to medium tension. Using too much force can cause the internal wafers to seize, making it impossible to feel the “click” at the shear line.

• The Decoding Rule: For the most accurate results, decode the lock in the opposite direction from which it was picked open.

• Smooth Navigation: Ensure the Lishi tool is fully seated before picking, as the 7-position internal track requires precise alignment.

Vehicle Compatibility (Guidance Only)

The HU83 profile is standard for many European models, specifically within the following brands:
