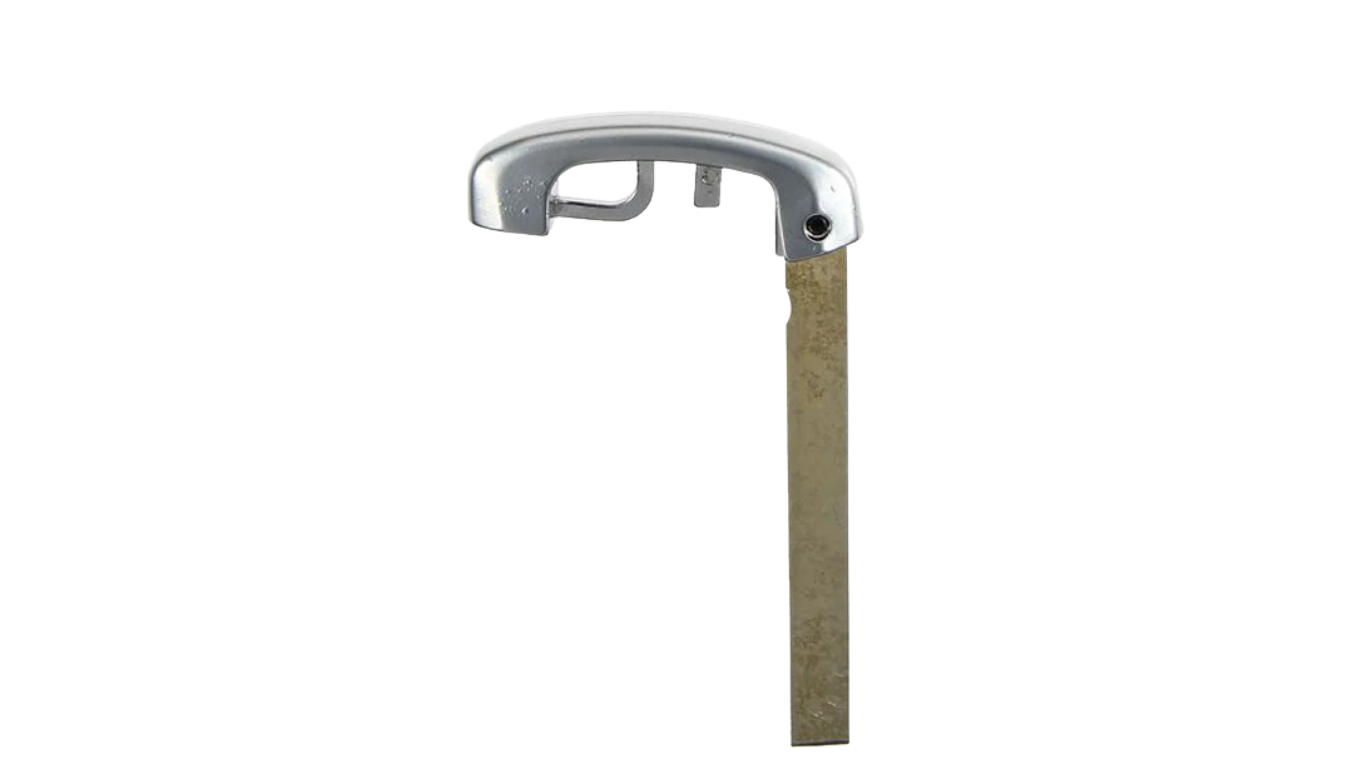

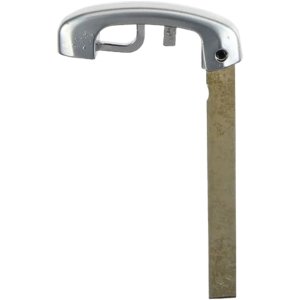

Key Blade: HU100R

The HU100R  is key blade used primarily in BMW “F-Series” and some later “E-Series” models. Below is the technical breakdown and usage guide for the Lishi HU100R tool.

Technical Specifications

• Positions: 8 cutting positions.

• Depths: 4 potential cutting depths, labeled 1, 2, 3, and 4 (4 being the deepest).

• Tool Compatibility: Specifically designed to be picked and decoded using the Lishi HU100R (R100HU) tool.

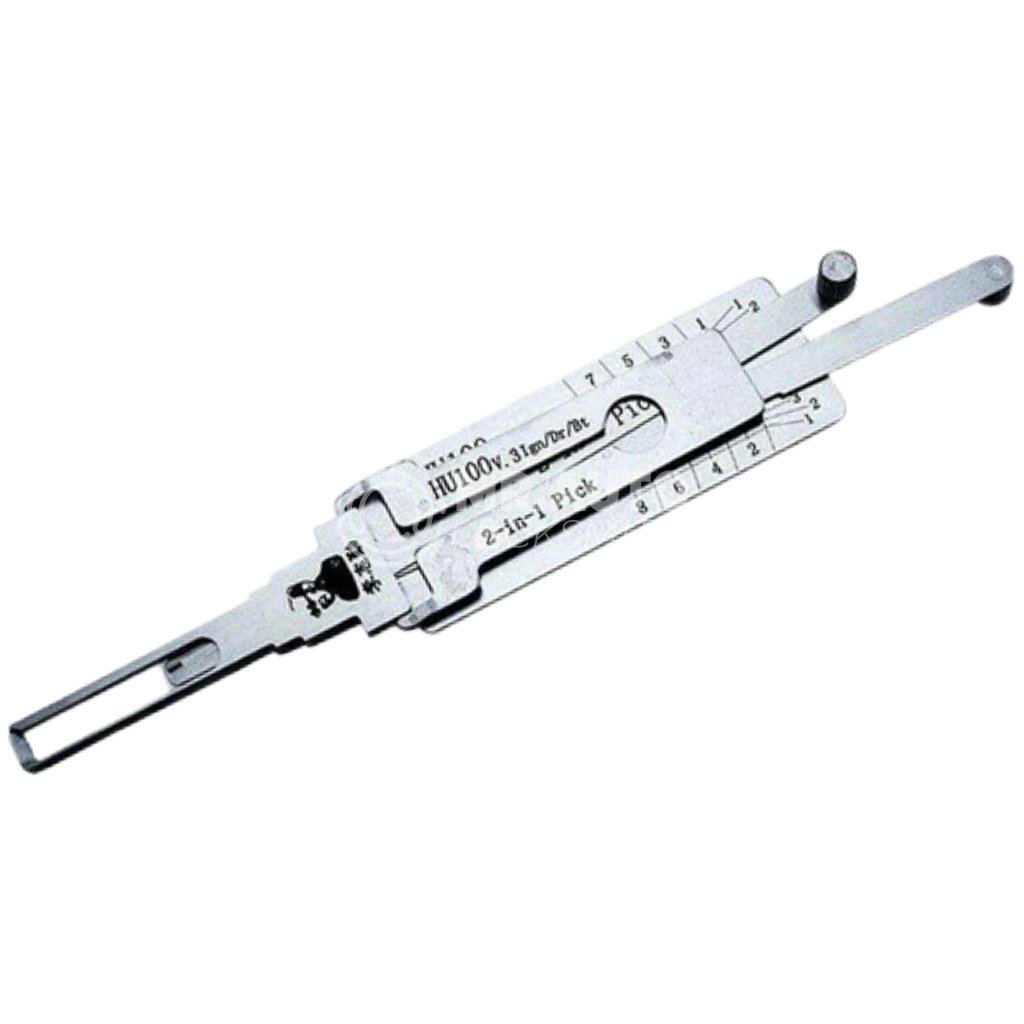

Professional Tips for Using the Lishi HU100R

This lock requires a more delicate touch compared to older BMW systems. Follow these guidelines for the best results:

• Tension Control: * Use light to medium tension. These locks can be sensitive; applying too much force may cause the wafers to bind or lead to incorrect depth readings during decoding.

• Decoding Direction: * Unlike some other models, you should decode these locks in the same direction that the lock was picked (the direction of the rotation).

• Precision Picking: * Ensure the tool is fully inserted and seated correctly before beginning. Because there are 8 positions, accuracy in your lifter placement is key to a successful open.
