SKU	ALK07381
Car Brands	Toyota, Lexus
Category	Opening Tools
Manufacturer	Lishi
Condition	New

Toyota

No.	Model	Year Range
1	Aristo	1997 – 2005
2	Camry	2006 and newer
3	Harrier	2003 – 2010
4	Highlander	2007 and newer
5	Prius	2009 and newer
6	Progress	1998 – 2007
7	Toyota Venza	2008 and newer

Lexus

No.	Model	Year Range
1	ES300	1998 – 2004
2	GS300	1998 and newer
3	GS400	1998 and newer
4	GS430	2001 and newer
5	GX470	2003 and newer
6	IS200	1999 and newer
7	IS300	2001 and newer
8	LS400	1999 – 2005
9	RX300	1999 and newer
10	SC300	1998 and newer
11	SC400	1998 and newer

Subaru

No.	Model	Year Range	Notes
1	Subaru BRZ	2013 – 2014	With Proximity
2	Subaru Forester	2014 – 2015	—

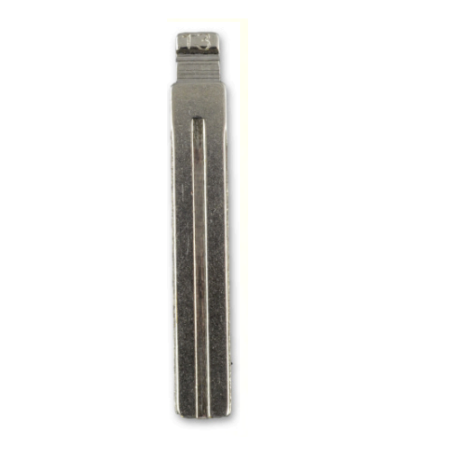

Key Profile: 48TOY

Feature	Description
Key Type	Laser key with four internal tracks
Cutting Positions	5 positions (on each side)
Cutting Depths	3 possible depths
Depth Markings	1, 3, and 5 (where depth 5 = no cut)

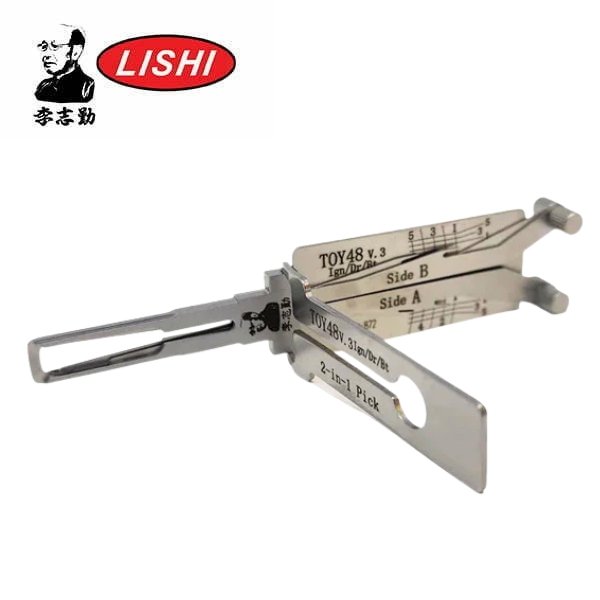

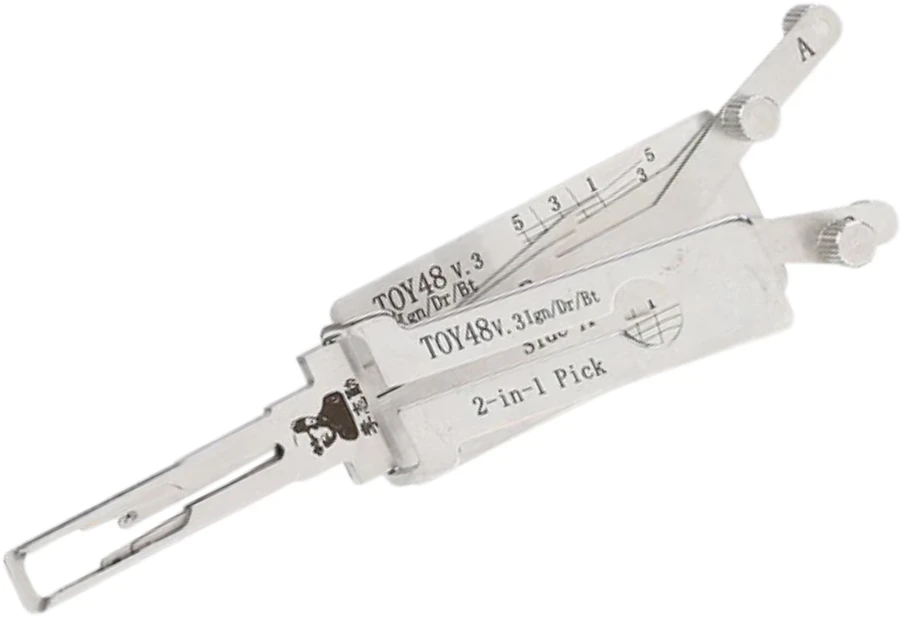

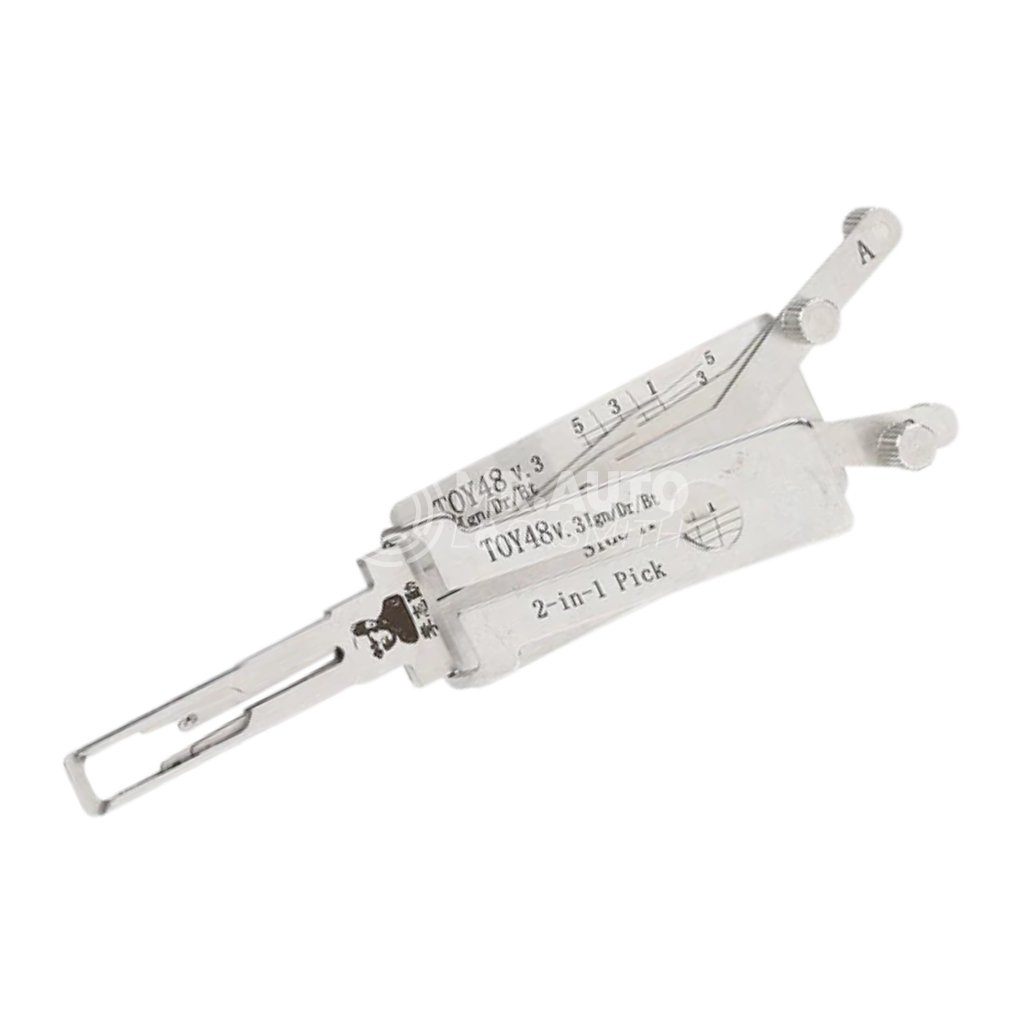

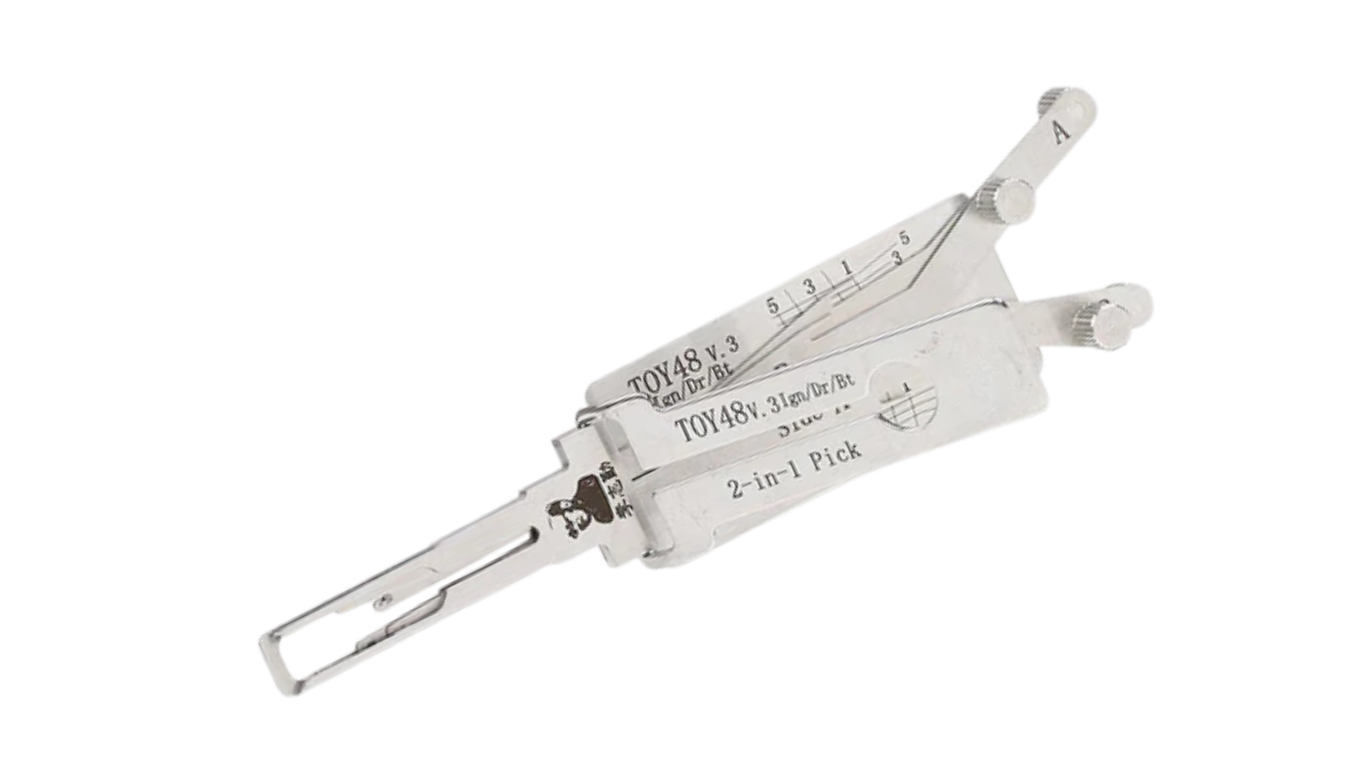

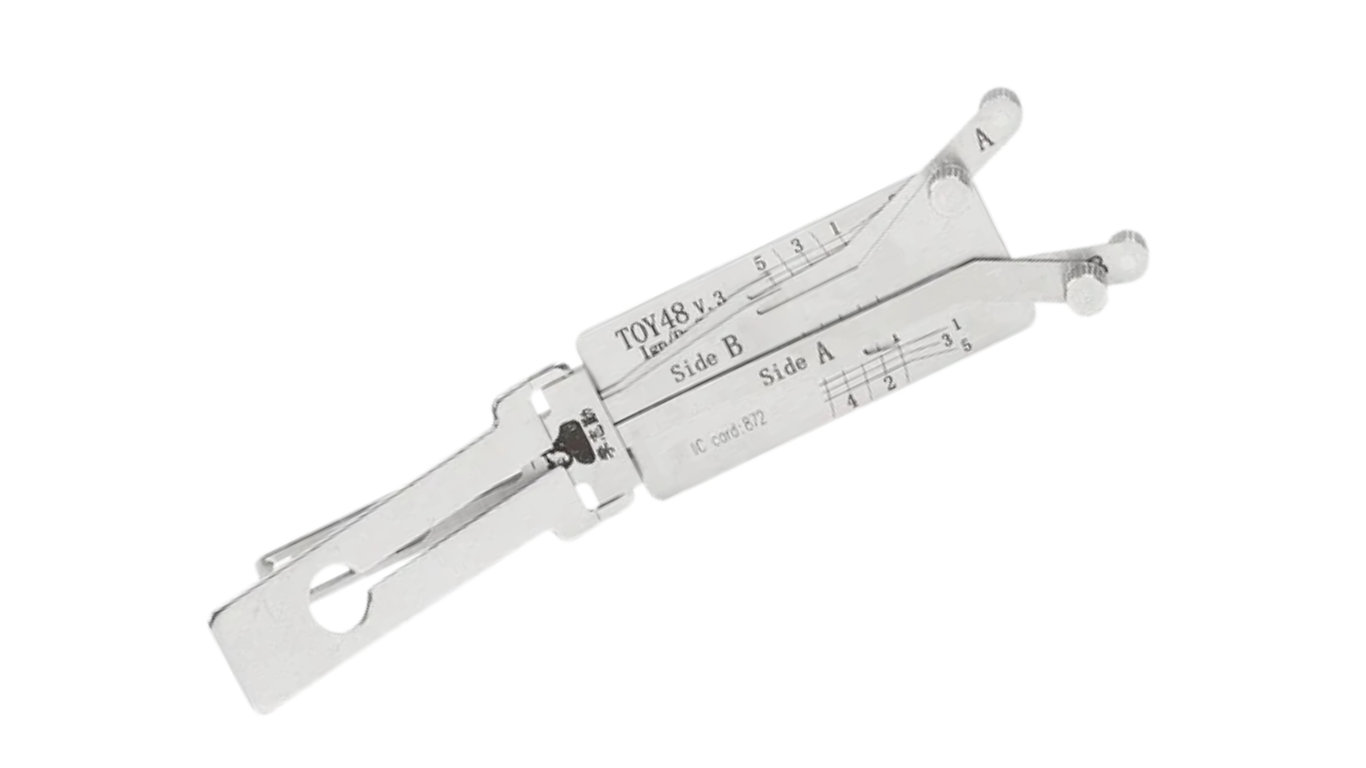

Tool Compatibility	Can be picked and decoded using Lishi 48TOY tool

Lishi 48TOY Usage Tips

• Use light to medium tension when working on these locks.
• These locks contain split wafers in all five positions.
• This means:
  • When picking, you will open one side first.
  • The lock will then rotate slightly (about a quarter turn).
  • You will need to pick it again to fully open it.
• The lock will remain in the open position, and:
  • It must be picked again before it can be turned back to the locked position.
  • After that, the tool can be removed safely.
• Always decode the lock in the same direction it was picked while in the open position.

Important Note

These locks are relatively more difficult to pick compared to most others.
If you plan to work on Toyota and Lexus vehicles, it is highly recommended to:

• Get two practice locks from a scrapyard,
• Practice picking and decoding them repeatedly,
• Until you become fully comfortable with the process.
