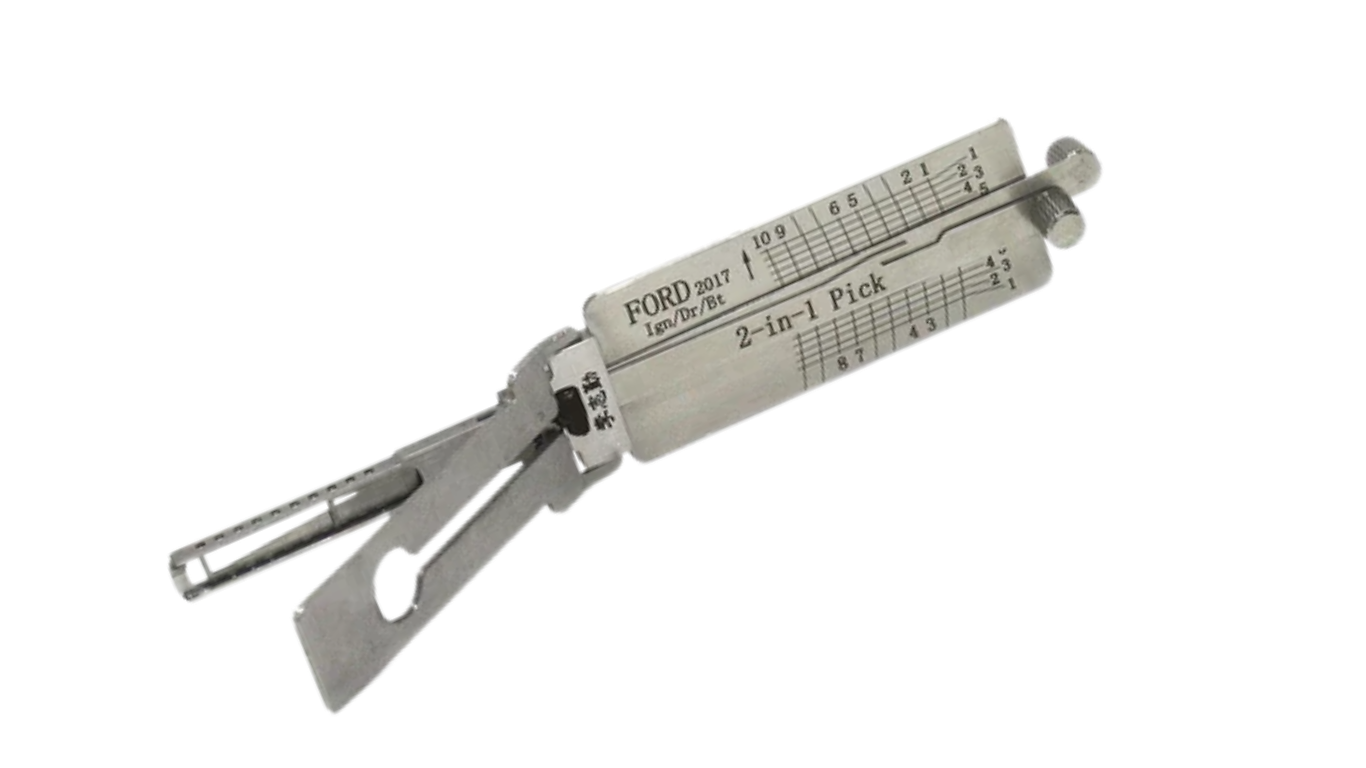

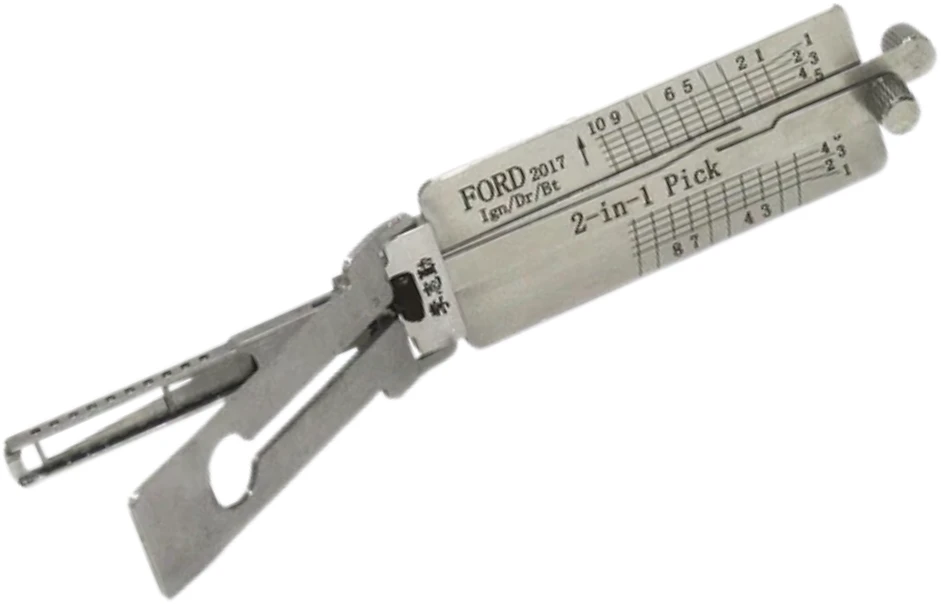

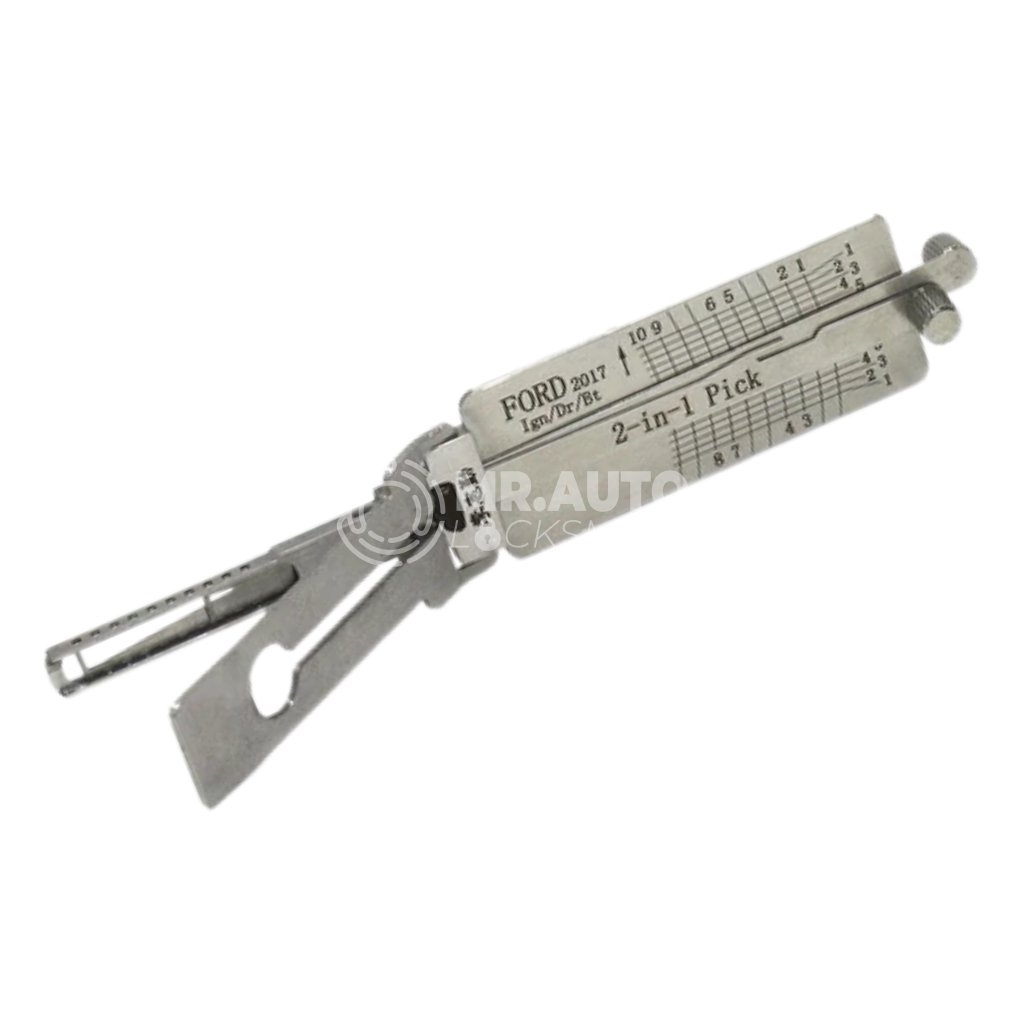

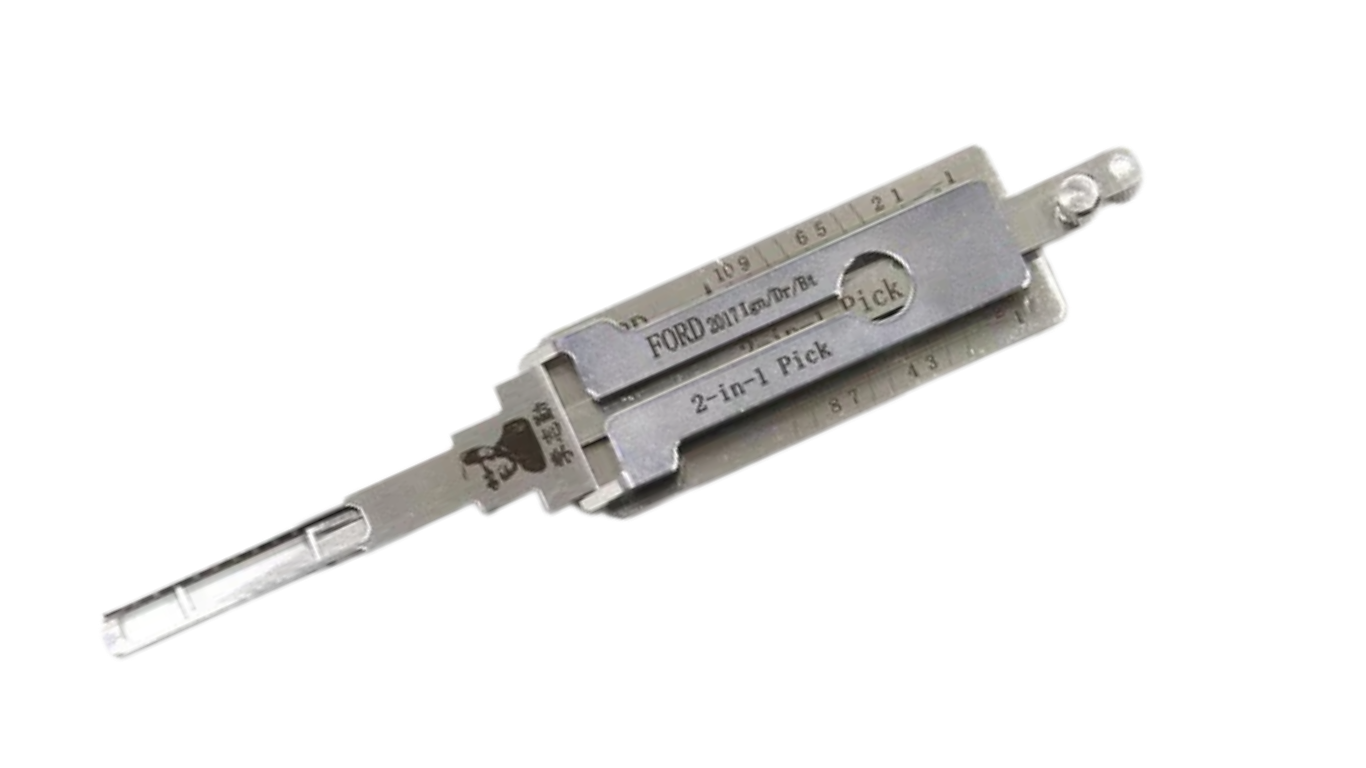

Lishi HU198 Ford2017 2-in-1 Decoder and Pick is designed for Ford [Profile: HU198 8 Cut (2 Track Internal)] Suitable for: Door, boot and Ignition locks

The keyway is similar to HU101 but with the internal track (groove).

List of makes and models (for guidance only)

FORD

• Use this HU198 2-in-1 Lishi pick & decoder for 8-cut Ford 2017 locks that use the new inner groove keyway.

HU198/101 Key Specifications (Double-Sided Laser Key)

• External double-sided laser key
• Contains 10 cut positions
• Features 5 possible cut depths
• Depths are typically indicated as: 1, 2, 3, 4, 5 (where 5 is the deepest)
• Position 10 always has a cut of depth 2
• Can be picked and decoded using the Lishi HU101 tool

Professional Tips for Picking 101HU Locks with Lishi

• Use light tension for better feedback
• These locks tend to provide good wafer feedback
• Position 10 is always depth 2 (important reference point)
• Position 1 never has a depth of 1
• There will never be more than two depth differences between adjacent positions
• When decoding, always follow the same direction as picking
