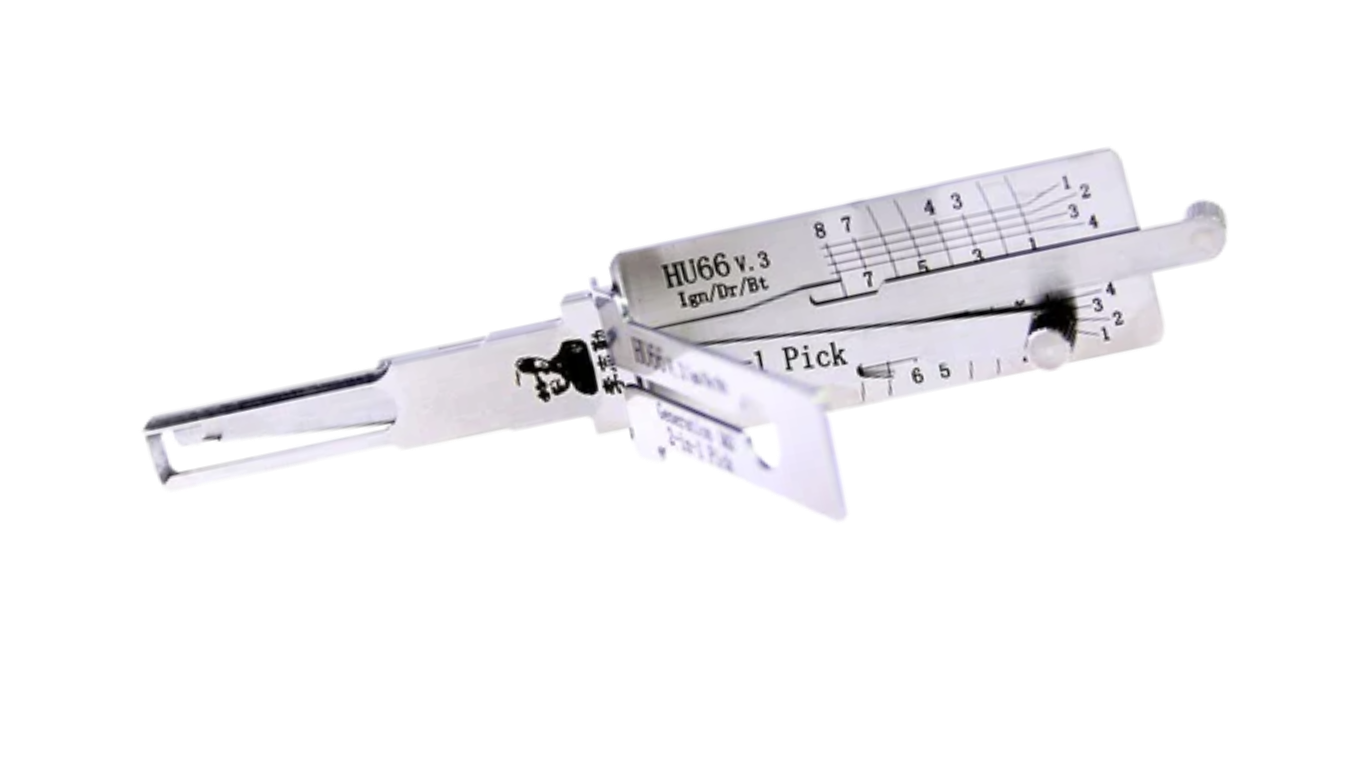

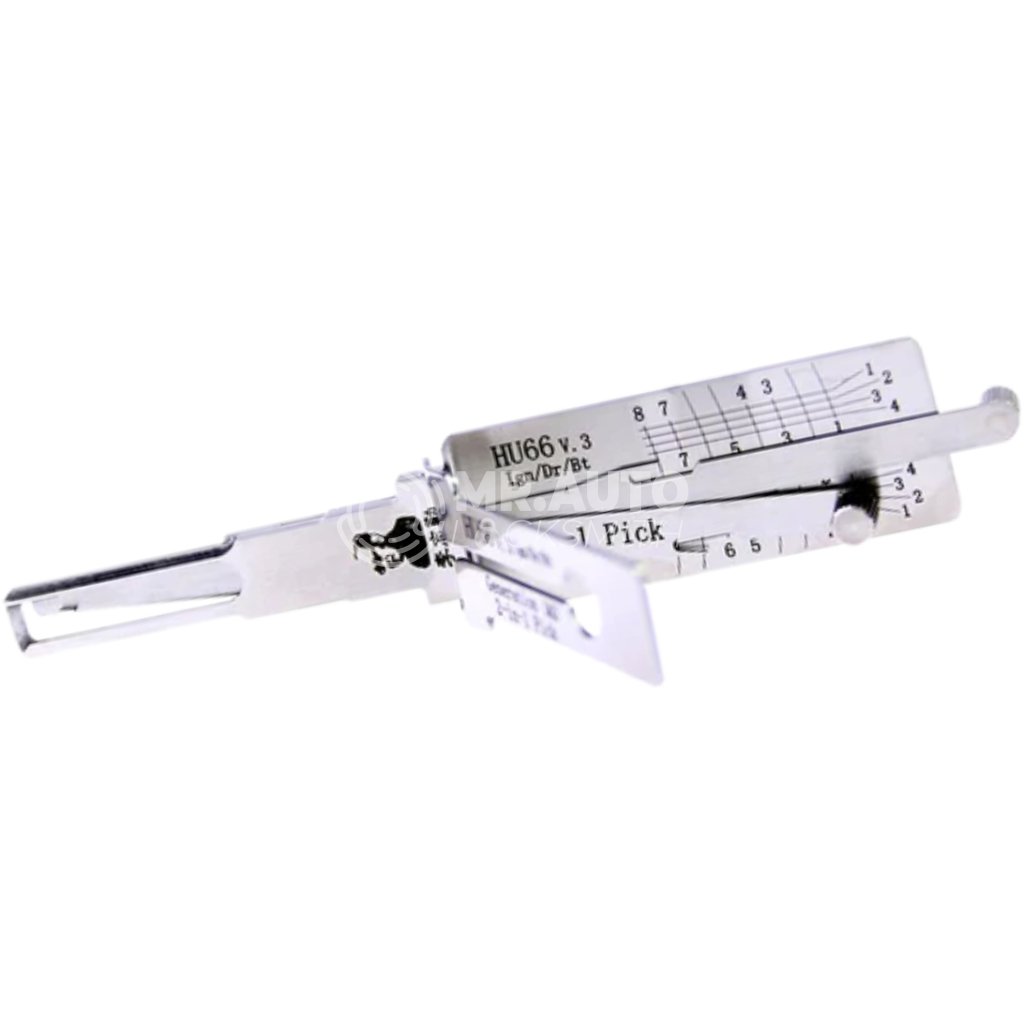

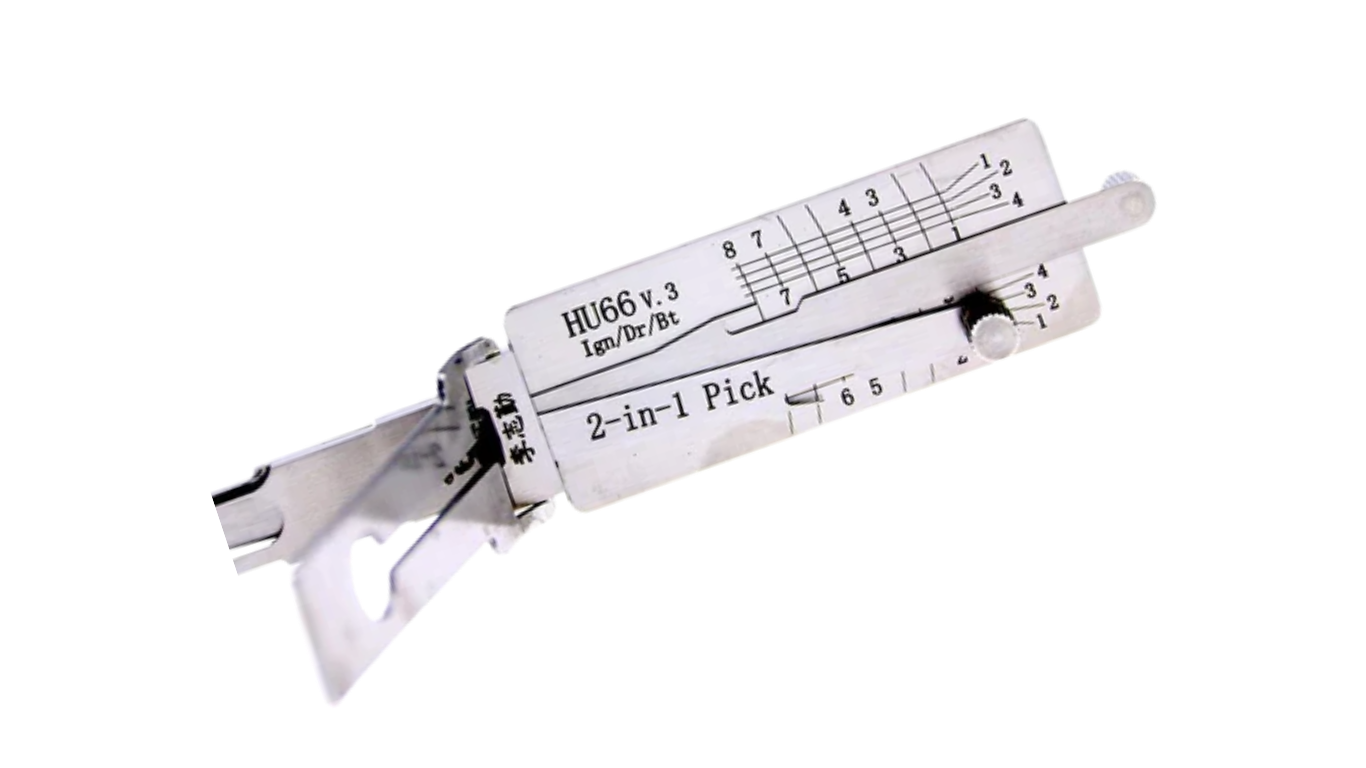

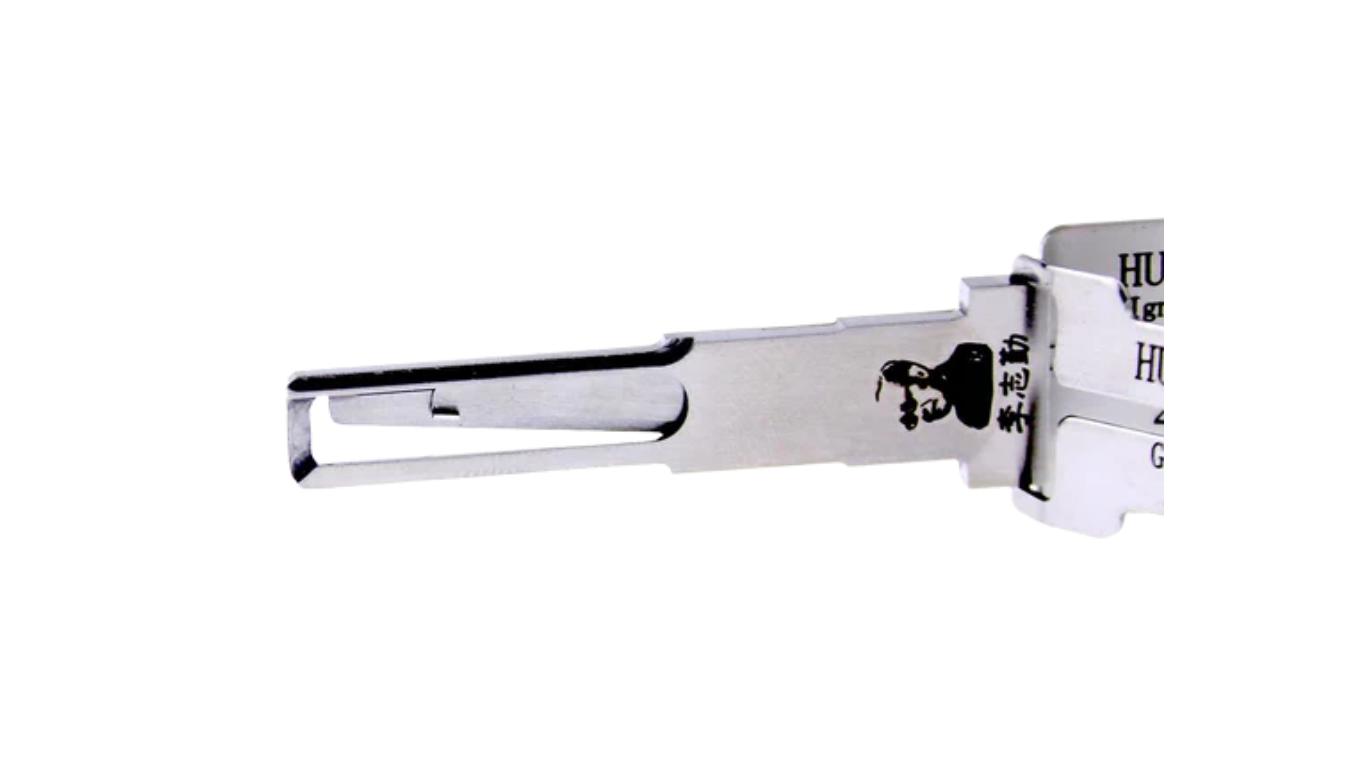

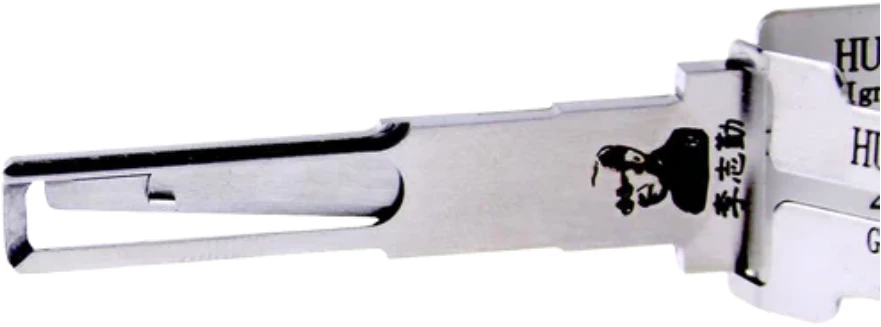

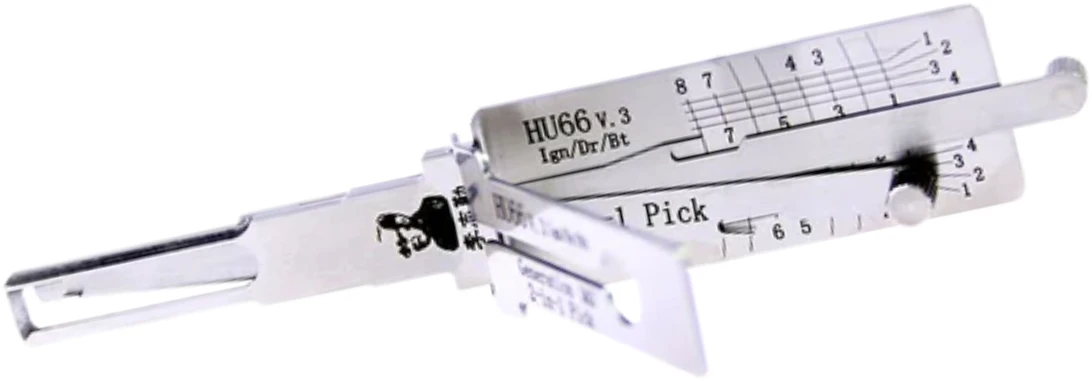

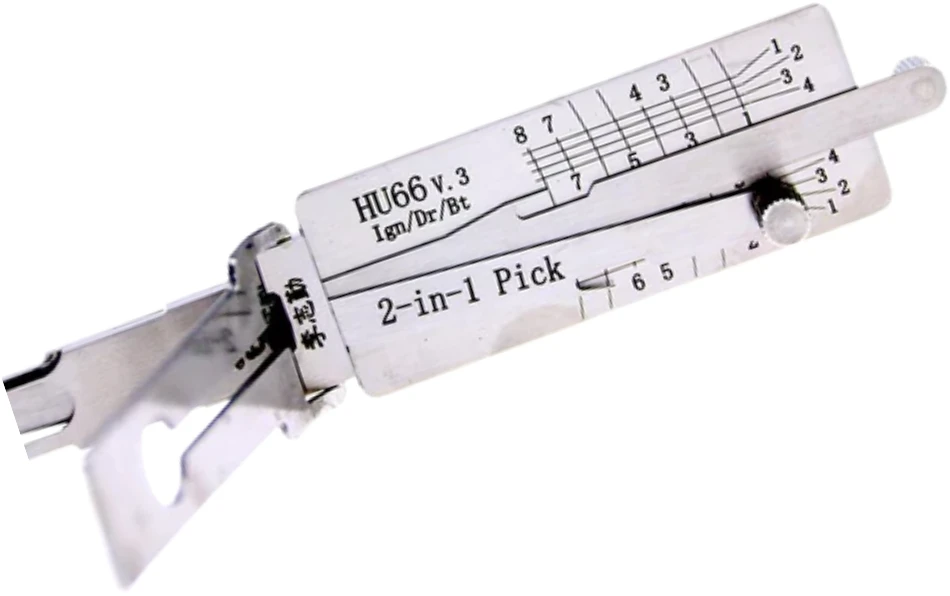

HU66 (Twin Lifter) Original Lishi 2-in-1 Decoder and Pick for VW, Audi, Porsche

Description

Key Blade: HU66 (Twin Lifter)

The HU66 is the “gold standard” for VAG high-security locks, spanning nearly two decades of production. The Lishi HU66 (Twin Lifter) is specifically engineered to handle the 2-track internal configuration with high precision.

Technical Specifications

• Type: 2-Track Internal Laser-Cut.

• Wafers: Typically 8 wafers arranged in two banks (top and bottom).

• Lifter Style: Twin Lifter (allows independent manipulation of both tracks).

• Tool Compatibility: Specifically for the Lishi HU66 2-in-1 Decoder and Pick.

Vehicle Reference Guide (Guidance Only)

Professional Usage Tips

• Generational Differences: While this tool fits all HU66 keyways, VAG updated the internal clutch mechanism over time (Gen 1, Gen 2, and Gen 3). The Twin Lifter is exceptionally good at navigating the Gen 3 “clutch” locks which can be springy or difficult to feel.

• Spring Resistance: These locks are known for having strong spring tension. Use medium tension on the tool to ensure you can feel the “click” when a wafer hits the shear line.

• The “Double Click”: Occasionally, a wafer may feel set but requires a slight second nudge. Always double-check your positions before attempting to turn.

• Decoding: Once the lock is picked and turned to the decoding position, the tool provides a clear depth reading (1–4). Most VAG systems use a “1234” depth scale.

• Maintenance: Because many of these vehicles (like the early A4s or Beetles) are now older, ensure the keyway is flushed with a specialized lock lubricant to prevent wafers from sticking.

Key Blade: HU66 (VAG High Security)

The HU66 is a highly versatile internal laser-cut key system used extensively across the Volkswagen Audi Group (VAG). Understanding the generational differences is key to mastering this lock.

Technical Specifications

• Type: Internal double-track laser-cut key.

• Positions: 8 cutting positions.

• Depths: 4 potential cutting depths, labeled 1 to 4 (1 is the shallowest, 4 is the deepest).

• Tool Compatibility: Specifically designed to be picked and decoded using the Lishi HU66 (2-in-1) tool.

Understanding the Three Generations

While the external key shape remains consistent, the internal wafer configuration evolved over time:

• Generation 1: Wafers follow a “1-up, 1-down” alternating pattern.

• Generation 2 & 3: Wafers follow a “2-up, 2-down” alternating pattern.

  • Note: Later generations often include a “clutch” mechanism that makes picking more technical.

Professional Tips for the Lishi HU66

The HU66 is unique because it offers multiple ways to determine the key code, but using the Lishi tool remains the most efficient method.

• Internal Markings:

  • Unlike many other locks, the depth values are often stamped directly onto the internal wafers. While this makes decoding via disassembly possible, the Lishi tool allows you to read these depths non-destructively in seconds.

• Decoding Direction:

  • Always decode this lock in the same direction that you turned it to pick it open.

• Spring Management:

  • The wafers in HU66 locks can be quite “springy,” especially in newer models. If you lose your progress, it is often due to over-lifting a wafer into a false set.

• Cleanliness:

  • Because many of these locks (especially Gen 1) are on older vehicles, they may be gummed up with old grease. A quick spray of electronic cleaner or dedicated lock lubricant can significantly improve the tactile feedback through your Lishi tool.

Summary Reference

For those looking for structured visual training, the step-by-step application of this tool is covered in the Automotive Locksmithing Course mentioned above.
