The HU162T (9) is a complex, high-security key system introduced for the latest generation of VAG (Volkswagen Audi Group) vehicles. Unlike traditional laser keys, this system utilizes multiple cutting surfaces to increase security.
Technical Specifications
Type: 9-Cut system featuring a 2-track internal profile plus a side-cut profile.
Configuration: * 6 Internal Cuts: Located in the main inner grooves.
3 Side Cuts: Located on the side of the blade.
Positions: 9 total tool spaces (1–9).

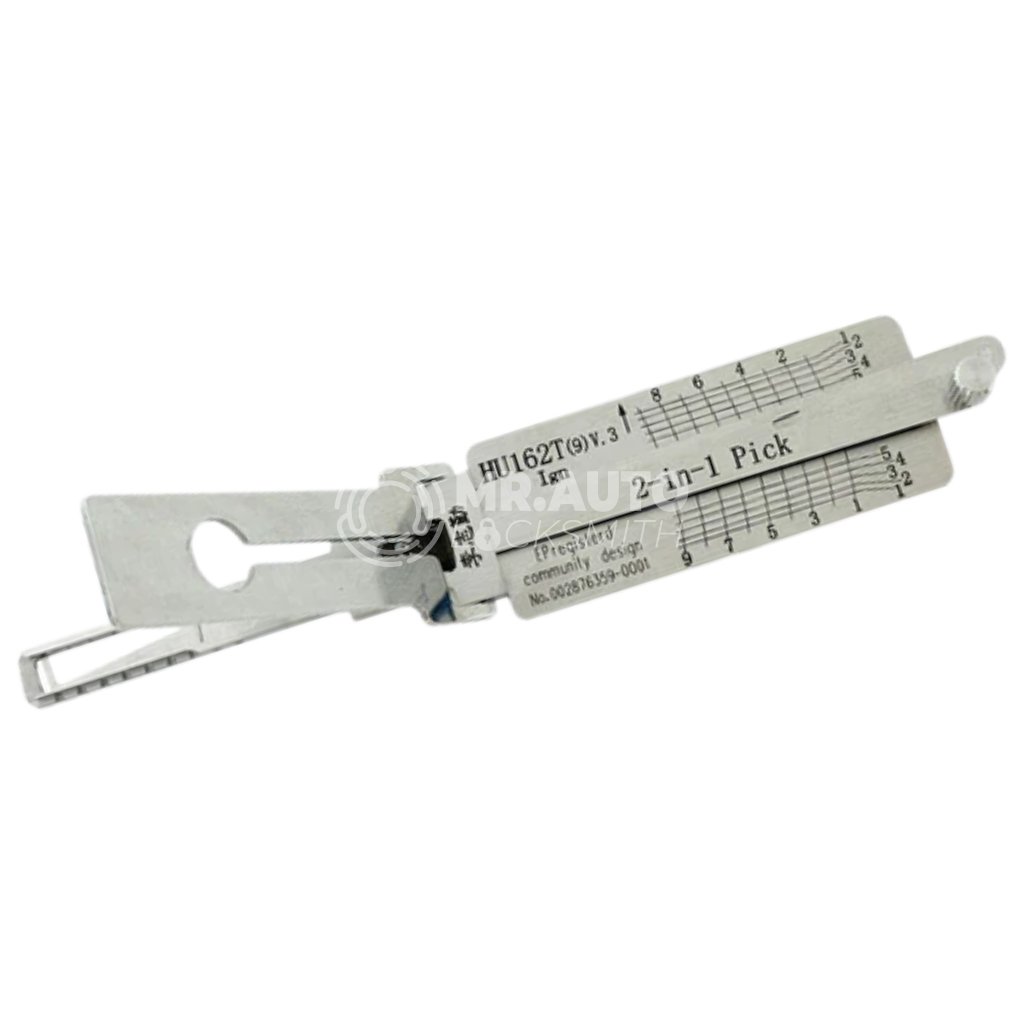

Tool Compatibility: Specifically designed for the Lishi HU162T(9) 2-in-1 (Ignition version).
Vehicle Reference Guide (Guidance Only)
Make
Model
Year Range
VOLKSWAGEN
Golf
2015 – 2021
GTI
2015 – 2021
Jetta
2015 – 2021
Atlas
2018 – 2021
Tiguan
2017 – 2021
SKODA
Various Models
2016 onwards
AUDI
Various Models
2015 onwards
Professional Usage Notes
Ignition Specific: This specific Lishi tool is optimized for the ignition cylinder. While it may assist with doors, its primary spacing and lifter configuration are calibrated for the ignition.
Newer Generation: This keyway replaced the older HU66 in most VAG models starting around 2015/2016.
Complex Decoding: Because this is a 9-cut system (6 internal + 3 side), careful attention must be paid to the side-cut positions to ensure a fully functional key is cut. Use the side-lifter on the tool to read the additional depths.
Key Blade: (8/10 Cut)
The HU162T (often referred to as the VAG2015 blade) is the modern standard for the Volkswagen Audi Group. It is a highly sophisticated internal laser-cut system that replaced the long-standing HU66.
Technical Specifications
Type: Internal double-track laser-cut key.
AKA: Often labeled as the “VAG 2015” keyway.
Positions: Can contain either 8 or 10 cutting positions depending on the specific lock configuration.
Depths: 5 potential cutting depths, labeled 1, 2, 3, 4, and 5 (5 being the deepest).
Tool Compatibility: Designed for use with the Lishi HU162T (VAG2015) 2-in-1 tool.
Professional Tips for Using the Lishi HU162T
Precision is critical with this keyway due to the tighter tolerances of modern VAG locks.
Opening Direction:
Left-Hand Drive (LHD) Models: Turn clockwise to unlock.
Right-Hand Drive (RHD) Models: Turn clockwise to unlock.
Internal Stamping:
The cuts are physically stamped onto the internal wafers. This means that if the lock is disassembled, the code can be read directly from the wafers.
Decoding Direction:
Always decode this lock in the same direction that it was picked open.
Key Cutting Note:
Important: Some automated key-cutting machines require you to reverse the depth numbers (e.g., 1 becomes 5) before inputting the code. Always check your specific machine’s software documentation for the VAG2015/HU162T series to avoid wasting key blanks.
