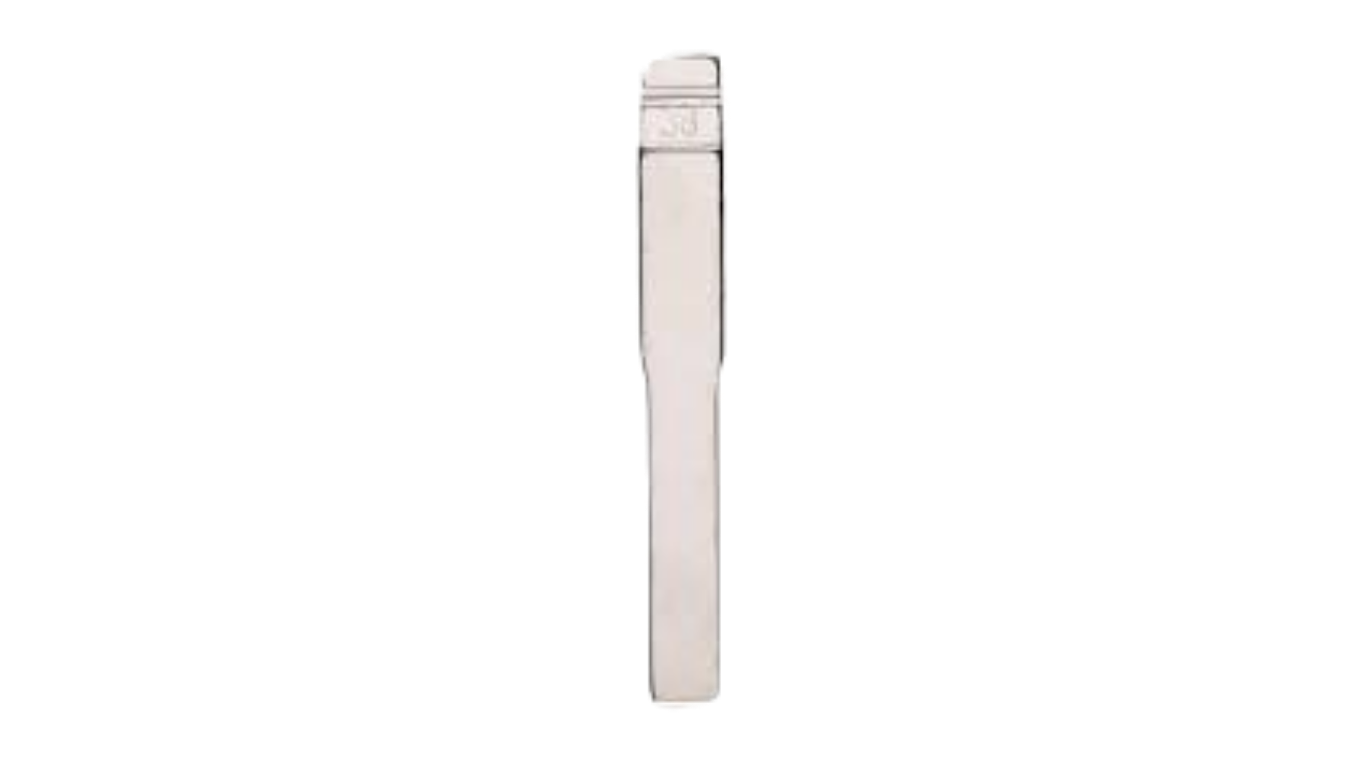

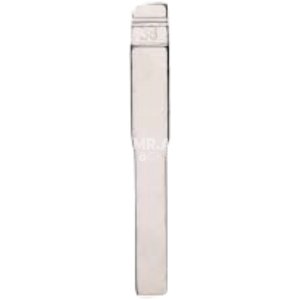

Key Blade: HU101

The HU101 is a high-security key system widely used by Ford, Jaguar, Land Rover, and Volvo. Below is the technical breakdown and professional usage guide for the Lishi HU101 tool.

Technical Specifications

• Type: External double-track laser-cut key.

• Positions: 10 cutting positions.

• Depths: 5 potential cutting depths, labeled 1, 2, 3, 4, and 5 (5 being the deepest).

• Fixed Value: Position 10 always contains a depth of “2”.

• Tool Compatibility: Specifically designed to be picked and decoded using the Lishi HU101 tool.

Professional Tips for Using the Lishi HU101

This lock is known for being user-friendly due to the clear feedback provided by the internal wafers.

• Tension Control:

  • Apply light to medium tension. The wafers in these cylinders are generally responsive and don’t require heavy force.

• Wafers & Feedback:

  • These locks tend to provide excellent tactile feedback when a wafer is picked correctly, making it easier to identify set positions.

• Decoding Rules & Logic:

  • Position 10: Always decode this as a 2.

  • Position 1: This position will never have a depth of 1.

  • MAC (Maximum Adjacent Cut): There will never be a difference of more than two depths between adjacent positions (e.g., if position 4 is a “1”, position 5 can only be a 1, 2, or 3).

• Decoding Direction:

  • Decode this lock in the same direction as it was picked/opened.
